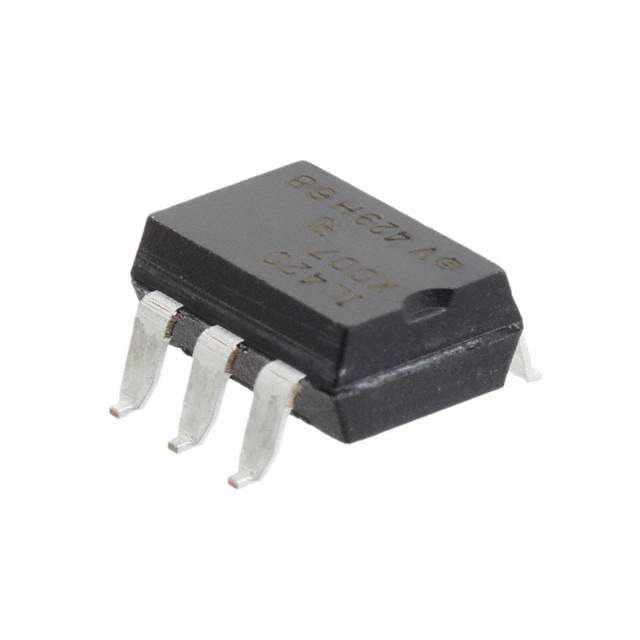

The Vishay Semiconductor Opto Division electronic component is a medium popularity product manufactured by Vishay Semiconductor Opto Division.

• Win Source Part Number: 1185435-IL4217-X007
• Packaging: Tube
• Operating Temperature Range: -55°C to 100°C
• Package: 6-SMD
• Approvals: BSI, CSA, cUR, FIMKO, and UR
• Mounting: SMD
• Output Type: Triac
• Voltage - Forward (Vf) (Typ): 1.3V
• Voltage - Off State: 700V
• Number of Channels: 1
• Voltage - Isolation: 5300Vrms
• Current - Hold (Ih): 200μA
• Family Name: IL4217
• Static dV/dt (Minimum): 10kV/μs
• Current - LED Trigger (Ift) (Maximum): 700μA (Typ)
• Current - DC Forward (If) (Maximum): 60mA
• Alternative Parts (cross-reference): MOC3052SR2M_F132, MOC3052SM_NL, and MOC3052SM_F132
• Introduction Date: October 06, 2003
• ECCN: EAR99
• Estimated EOL Date: 2024
• Manufacturer Homepage: www.vishay.com
