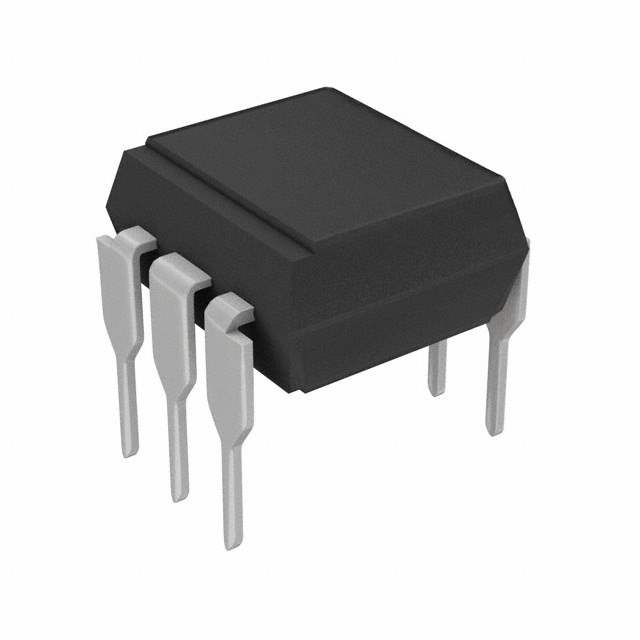

IL4118 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5300Vrms
Voltage - Off State 800V
Static dV/dt (Min) 10kV/μs
Current - LED Trigger (Ift) (Max) 1.3mA
Current - On State (It (RMS)) (Max) 300mA
Current - Hold (Ih) 200μA
Turn On Time 35μs
Forward Voltage 1.3V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Approvals BSI, CSA, cUR, FIMKO, UR
Win Source Part Number 068805-IL4118
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Lighting, Motor Drive & Control
Ultra Librarian 3D Model Ultra Librarian IL4118 CAD Model

Description

This Vishay electronic component is an isolator with a triac output type and a forward voltage of 1.3V.

  • Output Type: Triac
  • Forward Voltage: 1.3V
  • Voltage Off-State: 800V
  • Current On-State (It (RMS)) (Max): 300mA
  • Channel: One
  • Isolation Voltage: 5300Vrms
  • Current Hold (Ih): 200μA
  • Zero-Crossing Circuit: Yes
  • Static dV/dt (Min): 10kV/μs
  • Current LED Trigger (Ift) (Max): 1.3mA
  • Turn-On Time: 35μs
  • Temperature Range: -55°C to 100°C
  • Continuous Forward Current-Max: 60mA

The product is commonly used in industrial, lighting, motor drive, and control applications.
