APT1232AZ

Part No APT1232AZ
Manufacturer Panasonic
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP
Datasheet
APT1232AZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 500V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Max)
Forward Voltage 1.21V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals cUR, VDE
Win Source Part Number 1017954-APT1232AZ
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian APT1232AZ CAD Model

Description

The Panasonic APT1232AZ is a triac output type electronic component that is manufactured by Panasonic Electric Works.

  • Win Source Part Number: 1017954-APT1232AZ
  • Approvals: cUR and VDE
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Mounting: Through-hole
  • Suitable for: Various electronic applications that require a triac output type component

You May Also Be Interested in

TLP267J(E Toshiba Semiconductor and Storage – Price, Stock & Datasheet
TLP267J(E
Toshiba Semiconductor and Storage
OPTOISOLTR 3.75KV TRIAC 1CH 6SOP
Need more? Email Us

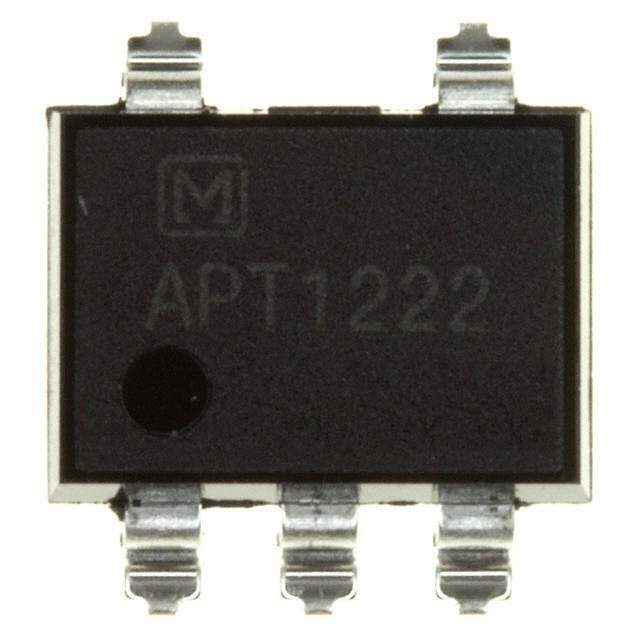

APT1222W Panasonic – Price, Stock & Datasheet
