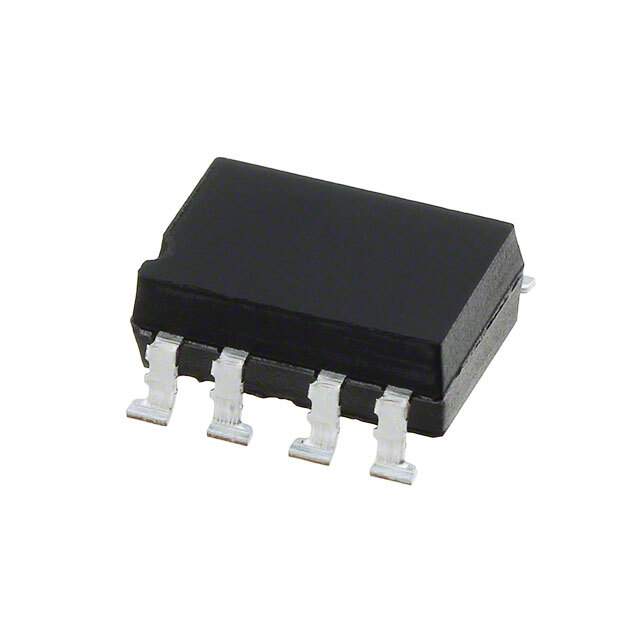

The IL300-F-X009T is a high-linearity analog optocoupler from Vishay Semiconductors. It is designed for applications requiring accurate and isolated signal transmission, particularly in industrial and instrumentation settings. This optocoupler provides excellent isolation between the input and output, ensuring safety and preventing ground loops.

Applications

• Industrial process control.
• Medical equipment.
• Data acquisition systems.
• Power supply feedback control.
• Analog signal isolation.

Features

• High linearity: 0.01% typical
• Input-output isolation voltage: 5300 VRMS
• Wide bandwidth: DC to 200 kHz
• Low input current: 1 mA
• Operating temperature range: -55°C to +100°C
• Compact package
• Creepage distance: > 8 mm

Benefits

• Accurate signal transmission ensures precise control and measurement in critical applications.
• High isolation voltage provides enhanced safety and prevents electrical interference.
• Wide bandwidth allows for the transmission of high-frequency signals without distortion.
• Low input current reduces power consumption and simplifies circuit design.
• Extended temperature range enables operation in harsh environments.
• Compact package saves board space.

Additional Details

The IL300-F-X009T consists of an infrared LED and two closely matched photodiodes. One photodiode is used in the feedback loop to stabilize the LED current, resulting in excellent linearity. The other photodiode provides the output signal. This configuration minimizes the effects of LED aging and temperature variations, ensuring stable and reliable performance over time. The device is commonly used in applications where accurate analog signal isolation is essential, such as in motor control, power inverters, and instrumentation amplifiers. The X009T suffix indicates a specific tape and reel packaging option for automated assembly.

Specifications:

• Isolation Voltage: 5300 VRMS
• Linearity: 0.01%
• Bandwidth: DC to 200 kHz
• Input Current: 1 mA
• Operating Temperature: -55°C to +100°C
• Package: 8-Pin DIP
