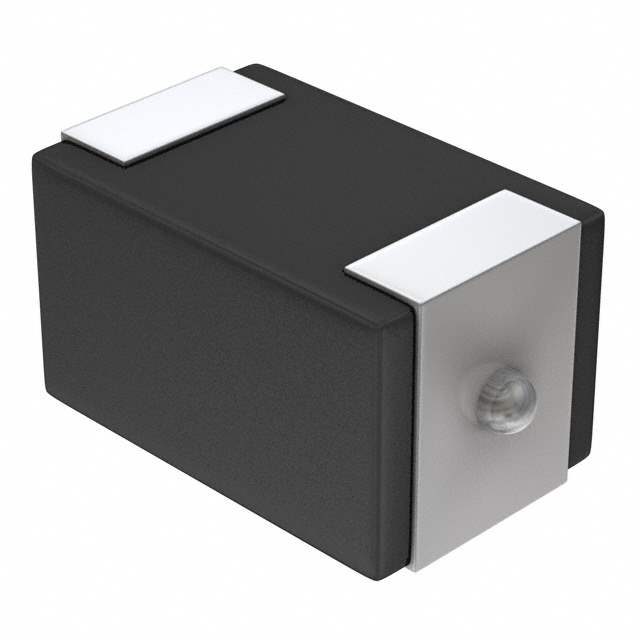

IHSM3825ER220L

Part No IHSM3825ER220L
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 22UH 1.05A 336 MOHM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 22μH
Tolerance ±15%
Current Rating 1.05A
Current - Saturation 960mA
DC Resistance (DCR) 336 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.225" (5.72mm)
Win Source Part Number 068777-IHSM3825ER220L
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IHSM3825ER220L CAD Model

Description

The Vishay 068777-IHSM3825ER220L inductor has an inductance of 22μH and a current rating of 1.05A.

  • Inductance: 22μH
  • Current Rating: 1.05A
  • Height Seated (Max): 0.225" (5.72mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±15%
  • Core Material: ferrite
  • Current Saturation: 960mA
  • DC Resistance (DCR): 336 mOhm Max
  • Temperature Range: -55°C to 125°C
  • Popularity: medium
  • Supply and Demand Status: limited.
