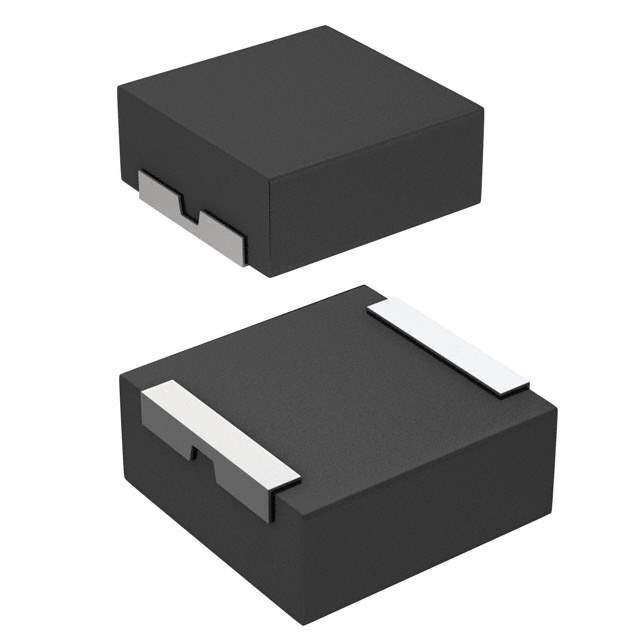

IHLP6767GZER2R2M5A

Name: IHLP6767GZER2R2M5A
Brand: Vishay
SKU: 602639
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP6767GZER2R2M5A
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	Low Profile, High Current IHLP Inductors
Datasheet	IHLP6767GZER2R2M5A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay Dale
Series	IHLP-6767GZ-5A
Packaging	Reel - TR
Type	Molded
Inductance	2.2μH
Tolerance	±20%
Current Rating	38.5A
Current - Saturation	38A
Shielding	Shielded
DC Resistance (DCR)	2.41 mOhm Max
Frequency - Self Resonant	19.8MHz
Ratings	AEC-Q200
Operating Temperature Range	-55°C ~ 155°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Size	0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Maximum)	0.276" (7.00mm)
Win Source Part Number	1185327-IHLP6767GZER2R2M5A
Manufacturer Homepage	www.vishay.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	IHLP-6767GZ-5A
Introduction Date	June 10, 2011
ECCN	EAR99
Country of Origin	China, Israel, United States of America
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian IHLP6767GZER2R2M5A CAD Model

Alternative Products

Description

The Vishay Dale IHLP-6767GZ-5A is a molded, nonstandard package, shielded inductor with an inductance of 2.2μH and a current rating of 38.5A.

Tolerance: ±20%
Rated: AEC-Q200
Current Saturation: 38A
Frequency Self-Resonant: 19.8MHz
DC Resistance (DCR): 2.41 mOhm Max
Estimated EOL date: 2025
Supply and Demand Status: limited
