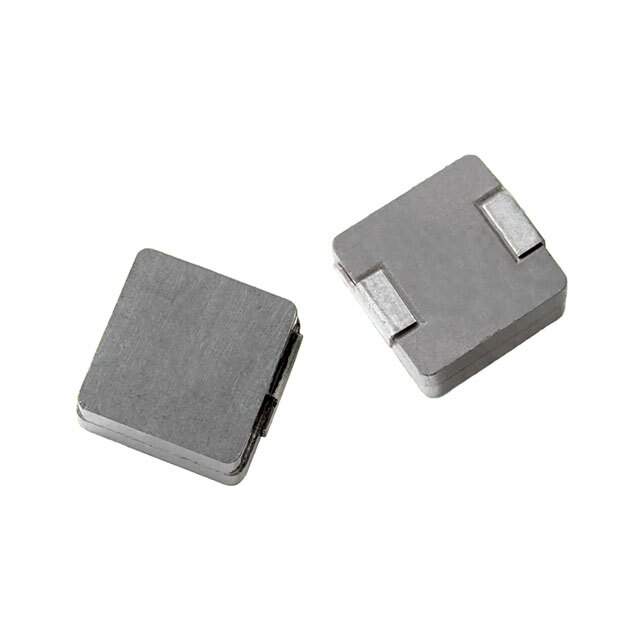

IHLP5050FDER100MA1 Real Image
Same model may have multiple batches, images only for reference.

IHLP5050FDER100MA1

Part No IHLP5050FDER100MA1
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-5050FD-A1 10 20% ER E3 / 10 µH Shielded Inductor 10 A 17.2mOhm Max Nonstandard
Datasheet
IHLP5050FDER100MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-5050FD-A1
Package Tape & Reel
Material - Core Metal Composite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 10 A
Current - Saturation (Isat) 15.5A
Shielding Shielded
DC Resistance (DCR) 17.2mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.525" L x 0.508" W (13.34mm x 12.90mm)
Height - Seated (Max) 0.252" (6.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP5050FDER100MA1CT,541-IHLP5050FDER100MA1DKR,541-IHLP5050FDER100MA1TR
Standard Package 250
Win Source Part Number 1004071-IHLP5050FDER100MA1
Ultra Librarian 3D Model Ultra Librarian IHLP5050FDER100MA1 CAD Model

Description

The IHLP5050FDER100MA1 is a fixed inductor from Vishay Dale.

  • Inductance: 10 µH
  • Current Rating: 10 A
  • Tolerance: ±20%
  • DC Resistance: 17.2mOhm Max
  • Mounting: SMD (SMT)
  • Packaging: Tape and Reel
  • Standard Package: 250 pieces
  • Shielding: Shielded
  • Material Core: Metal Composite
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.525" L x 0.508" W (13.34mm x 12.90mm)
  • Rating: AEC-Q200
  • Height: 0.252" (6.40mm)
  • Applications: Power Supplies, DC-DC Converters, and EMI Filters
