Same model may have multiple batches, images only for reference.

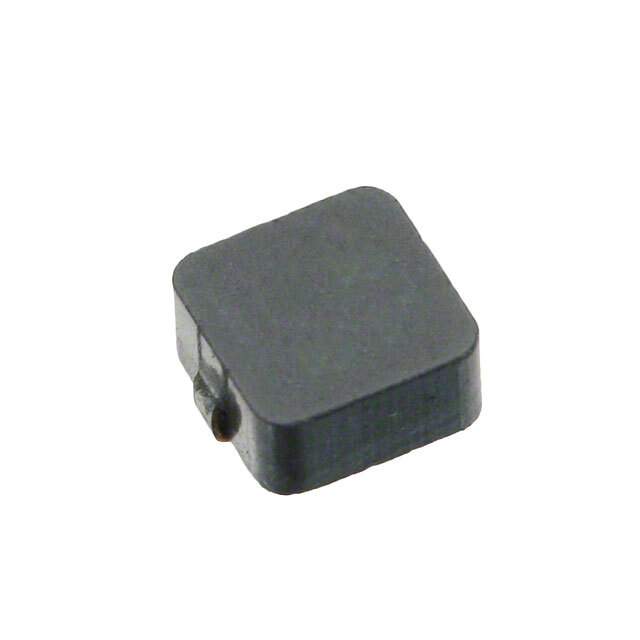

IHLP1212AEER1R0M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1212AEER1R0M11

Part No IHLP1212AEER1R0M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 1UH 3.9A 33 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay Dale
Packaging Reel
Type Molded
Inductance 1μH
Tolerance ±20%
Current Rating (Amps) 3.9A
Current - Saturation 5.3A
Shielding Shielded
DC Resistance (DCR) 33mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 714489-IHLP1212AEER1R0M11
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IHLP1212AEER1R0M11 CAD Model

Description

The Vishay Dale IHLP1212AEER1R0M11 is a molded, shielded, SMD mounted inductor with an inductance of 1μH and a tolerance of ±20%.

  • Product Name: IHLP1212AEER1R0M11
  • Manufacturer: Vishay Dale
  • Type: molded, shielded, SMD mounted inductor
  • Inductance: 1μH
  • Tolerance: ±20%
  • Maximum Current Saturation: 5.3A
  • DC Resistance: 33mOhm max
  • Height: 0.047" (1.20mm)
  • Manufacturer Package: nonstandard
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (unlimited)
  • Inductance Frequency-Test: 100kHz
  • Current Rating: 3.9A
