Same model may have multiple batches, images only for reference.

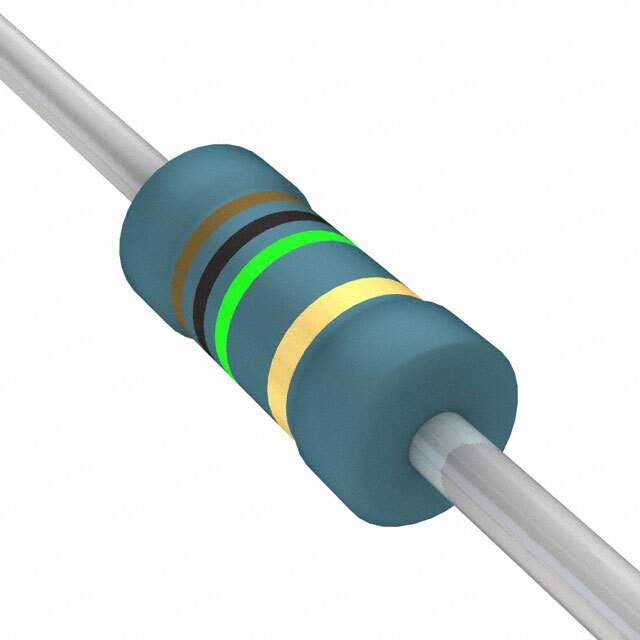

HVR2500001004JR500 Real Image
Same model may have multiple batches, images only for reference.

HVR2500001004JR500

Part No HVR2500001004JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 1M OHM 1/4W 5% AXIAL / 1 MOhms ±5% 0.25W, 1/4W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety Metal Film
Datasheet
HVR2500001004JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Manufacturer Vishay Beyschlag/Draloric/BC Components
Packaging Reel - TR
Resistance 1 mOhms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Part Number 230624123105,5043HV1M000J12AFX,PPCQJ1.0MTR,PPCQJ1.0MCT,2306 241 23105
Standard Package 5,000
Win Source Part Number 1325913-HVR2500001004JR500
Ultra Librarian 3D Model Ultra Librarian HVR2500001004JR500 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components’ electronic component with a Win Source Part Number of 1325913-HVR2500001004JR500 is a high-quality resistor categorized under through-hole resistors.

  • Resistance: 1 mOhms
  • Tolerance: ±5%
  • Power Rating: 0.25W
  • Composition: Metal Film
  • Standard Package: 5,000
  • Packaging: Reel - TR
