Same model may have multiple batches, images only for reference.

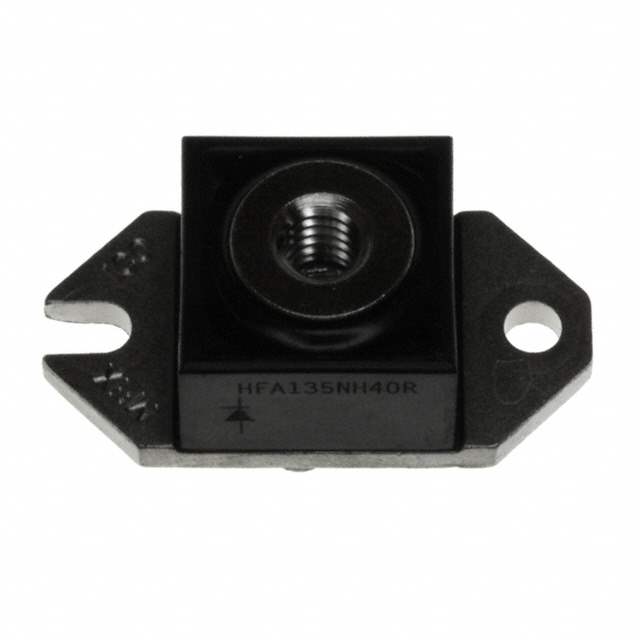

HFA135NH40R Real Image
Same model may have multiple batches, images only for reference.

HFA135NH40R

Part No HFA135NH40R
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE MODULE 400V 135A HALF-PAK
Datasheet
HFA135NH40R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) 135A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 135A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 120ns
Current - Reverse Leakage @ Vr 9μA @ 400V
Mounting Chassis Mount
Case / Package HALF-PAK
Win Source Part Number 204767-HFA135NH40R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HFA135NH40R CAD Model

Description

The Vishay 204767-HFA135NH40R is a Standard Diode Type with a maximum DC reverse voltage of 400V and an average rectified current of 135A. The voltage forward at 135A is 1.3V and the reverse recovery time is 120ns. The current reverse leakage at 400V is 9μA. The diode is mounted on a chassis and packaged in bulk. The diode is part of the Discrete Semiconductor Products category and is obsolete (EOL). The supply and demand status is limited.
