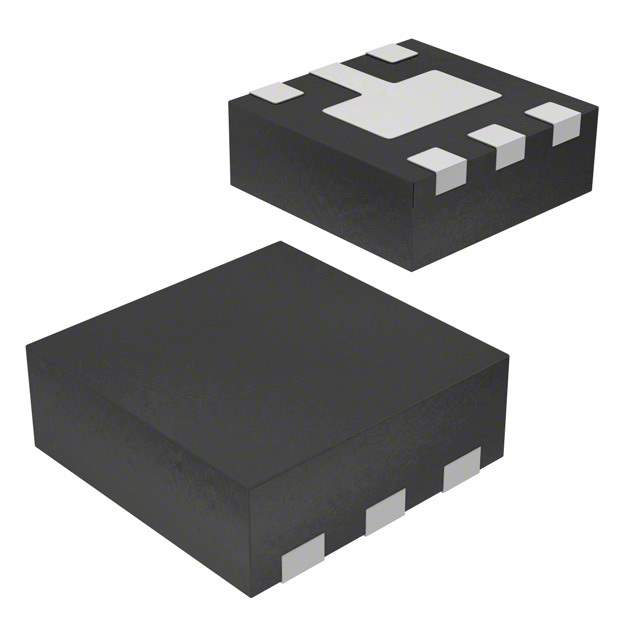

GMF05LC-HSF-GS08 Real Image
Same model may have multiple batches, images only for reference.

GMF05LC-HSF-GS08

Part No GMF05LC-HSF-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC LLP75-6L
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 41 Weeks
Features 12.5V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount LLP75-6L
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C (TJ)
Mounting Surface Mount
Package 6-UFDFN Exposed Pad
Case / Package LLP75-6L
Family Name GMF05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number GMF05LCHSFGS08, GMF05LC-HSF-GS08CT, GMF05LC-HSF-GS08DKR, GMF05LC-HSF-GS08TR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 919630-GMF05LC-HSF-GS08
Ultra Librarian 3D Model Ultra Librarian GMF05LC-HSF-GS08 CAD Model

Description

The Vishay 919630-GMF05LC-HSF-GS08 is a TVS diode surface mount component that is part of the GMF05 family.

  • Supply and Demand Status: balance
  • Package: 6-UFDFN Exposed Pad
  • Mounting: surface
  • Clamp: 12.5V
  • Ipp: 5A (8/20μs)
  • Family Name: GMF05
  • Win Source Part Number: 919630-GMF05LC-HSF-GS08
