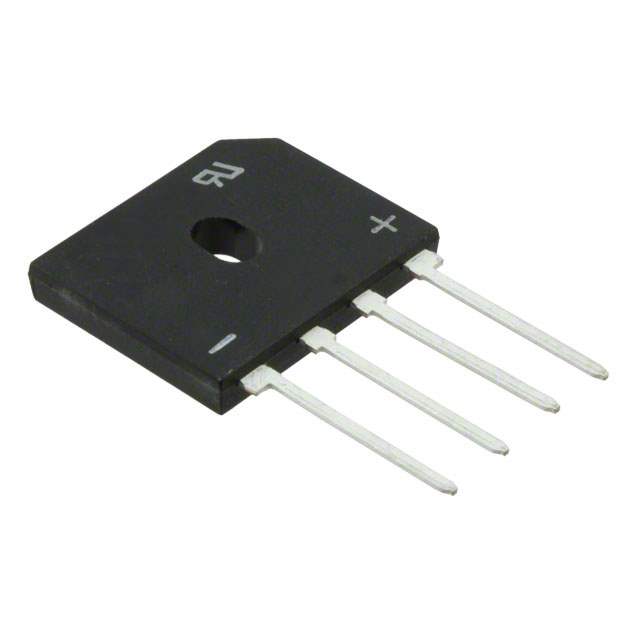

GBU8K-E3/45 Vishay GBU8K-E3/45 Real Image GBU8K-E3/45 real image GBU8K-E3/45 real image 2
Same model may have multiple batches, images only for reference.
GBU8K-E3/45 Vishay GBU8K-E3/45 Real Image GBU8K-E3/45 real image GBU8K-E3/45 real image 2
GBU8K-E3/45 Vishay GBU8K-E3/45 Real Image GBU8K-E3/45 real image GBU8K-E3/45 real image 2
Same model may have multiple batches, images only for reference.

GBU8K-E3/45

Part No GBU8K-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 8A 800V GBU
Datasheet
GBU8K-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800V
Current - Average Rectified (Io) 3.9A
Voltage - Forward (Vf) (Max) @ If 1V @ 8A
Current - Reverse Leakage @ Vr 5μA @ 800V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBU
Win Source Part Number 040401-GBU8K-E3/45
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBU8K-E3/45 CAD Model

Description

The 040401-GBU8K-E3/45 from Vishay is a through-hole mounted single-phase diode component.

  • Current - Average Rectified (Io): 3.9A
  • Voltage - Forward (Vf): 1V @ 8A
  • Current - Reverse Leakage @ Vr: 5μA @ 800V
  • Voltage - Peak Reverse (Max): 800V
  • Technology: Standard
  • Package: GBU
  • Operating Temperature: -55°C to 150°C (TJ)
  • Supply and Demand: Limited
