Same model may have multiple batches, images only for reference.

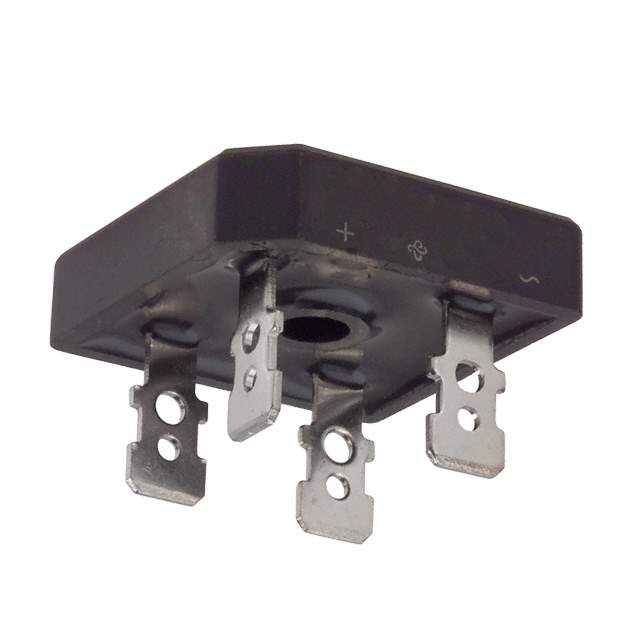

GBPC3502-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC3502-E4/51

Part No GBPC3502-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 200V 35A GBPC / Bridge Rectifier Single Phase Standard 200 V QC Terminal GBPC
Datasheet
GBPC3502-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 35 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 17.5 A
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type QC Terminal
Package / Case 4-Square, GBPC
Supplier Device Package GBPC
Base Product Number GBPC3502
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names GBPC3502-E4/1,GBPC3502-E4/1GI-ND,GBPC3502-E4/1GI,GBPC3502E451,GBPC3502-E4/1-ND,GBPC3502-E4/51GI
Standard Package 100
Win Source Part Number 1050820-GBPC3502-E4/51
Ultra Librarian 3D Model Ultra Librarian GBPC3502-E4/51 CAD Model

Description

The GBPC3502-E4/51 is a single-phase diode bridge rectifier from Vishay General Semiconductor - Diodes Division.

  • Type: Single-Phase Diode Bridge Rectifier
  • Packaging: Bulk
  • Standard Package: 100 Units
  • Current Average Rectified (Io): 35A
  • Forward Voltage (Vf): 1.1V @ 17.5A
  • Reverse Leakage Current: 5µA @ 200V
  • Peak Reverse Voltage: 200V
  • Mounting: QC Terminals
  • Temperature Range: -55°C to 150°C (TJ)
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
  • Base Product Number: GBPC3502
