Same model may have multiple batches, images only for reference.

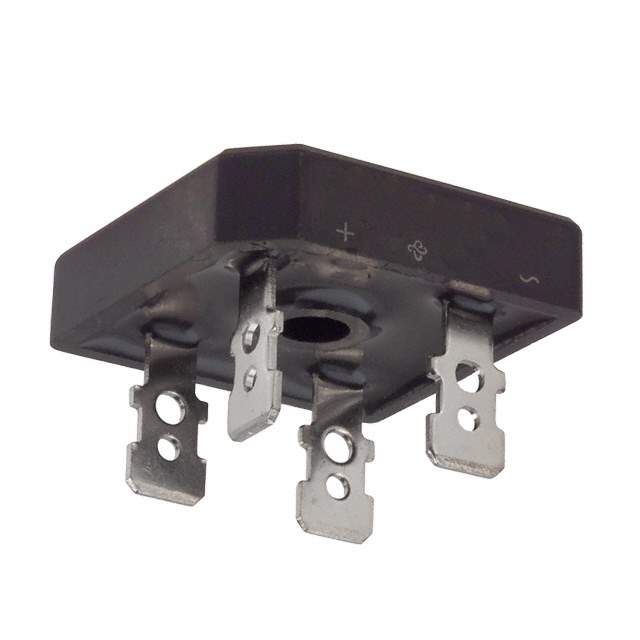

GBPC2506-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC2506-E4/51

Part No GBPC2506-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Glass Passivated Single-Phase Bridge Rectifier | BRIDGE RECT 1PHASE 600V 25A GBPC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 12.5A
Current - Reverse Leakage at Vr 5μA at 600V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style QC Terminal
Manufacturer Package 4-Square, GBPC
Supplier Device Package GBPC
Family Part Number GBPC2506
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1176985-GBPC2506-E4/51
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Consumer Electronics, Communications & Networking, Industrial
Ultra Librarian 3D Model Ultra Librarian GBPC2506-E4/51 CAD Model

Description

This electronic component is manufactured by Vishay Semiconductor Diodes Division and its Win Source Part Number is 1176985-GBPC2506-E4/51.

  • Packaging: Bulk
  • Mounting Style: QC Terminal
  • Technology: Standard
  • Diode Type: Single-Phase
  • Average Rectified Current (Io): 25A
  • Product Category: Discrete Semiconductor Products
  • Supplier Device Package: GBPC
  • Temperature Range: -55°C ~ 150°C
  • Manufacturer Homepage: www.vishay.com
  • Manufacturer Package: 4-Square, GBPC
  • Peak Reverse Voltage (Maximum): 600V
  • Supply and Demand Status: Limited
  • Application Field: Power Management, Consumer Electronics, Communications & Networking, and Industrial
  • Family Part Number: GBPC2506
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (Unlimited)
  • Forward Voltage (Vf) (maximum) @ If: 1.1V @ 12.5A
  • Current Reverse Leakage @ Vr: 5μA @ 600V
