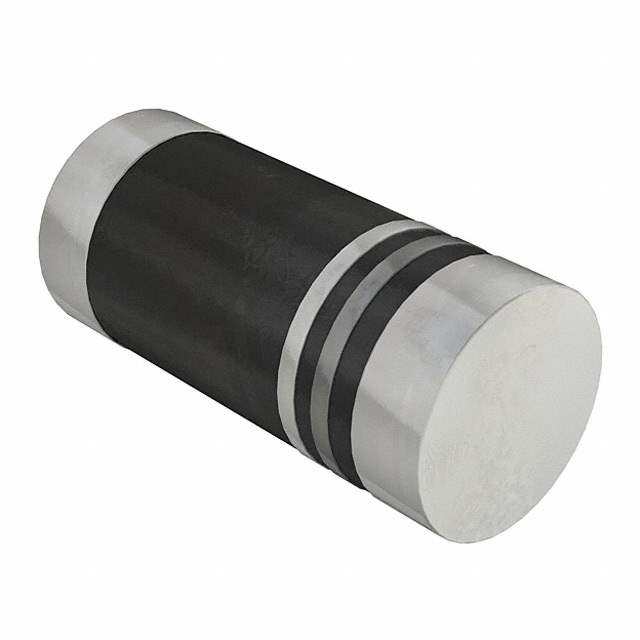

EGL34A-E3/83 Real Image
Same model may have multiple batches, images only for reference.

EGL34A-E3/83

Part No EGL34A-E3/83
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 50V 500MA DO213AA
Datasheet
EGL34A-E3/83 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 5μA @ 50V
Capacitance @ Vr, F 7pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-213AA (GL34)
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 108486-EGL34A-E3/83
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EGL34A-E3/83 CAD Model

Description

Product Overview

The EGL34A-E3/83 offers superior performance and reliability. Designed for high-stress applications, this component delivers excellent results.

Features and Benefits

  • High surge current capability for demanding power applications.
  • Low forward voltage drop maximizing efficiency.
  • Non-repetitive peak reverse power dissipation ensures stability.

Applications

  • Renewable energy systems
  • Motor control circuits
  • Battery chargers

This component is ideal for applications requiring stability under high current conditions.
