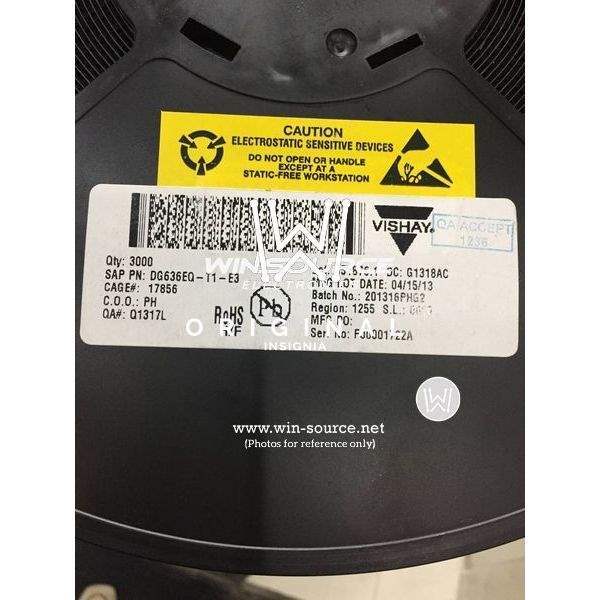

DG636EQ-T1-E3 Vishay DG636EQ-T1-E3 Real Image DG636EQ-T1-E3 label picture DG636EQ-T1-E3 Real Image
Same model may have multiple batches, images only for reference.
DG636EQ-T1-E3 Vishay DG636EQ-T1-E3 Real Image DG636EQ-T1-E3 label picture DG636EQ-T1-E3 Real Image
DG636EQ-T1-E3 Vishay DG636EQ-T1-E3 Real Image DG636EQ-T1-E3 label picture DG636EQ-T1-E3 Real Image
Same model may have multiple batches, images only for reference.

DG636EQ-T1-E3

Part No DG636EQ-T1-E3
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL SPDT 14TSSOP
Datasheet
DG636EQ-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 115 Ohm
Channel-to-Channel Matching (ΔRon) 1 Ohm
Single Supply Voltage (V+) 2.7 V to 12 V
Dual Supply Voltage(V±) ±2.7 V to 5 V
Max Switch Time (Ton,Toff) 60ns, 52ns
-3db Bandwidth 610MHz
Charge Injection 0.1pC
Channel Capacitance(CS off, CD off) 2.1pF, 4.2pF
Max Leakage Current (IS off) 100pA
Crosstalk -88dB @ 10MHz
Temperature Range - Operating -40°C to 125°C (TA)
Case / Package 14-TSSOP
Win Source Part Number 014297-DG636EQ-T1-E3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name DG636
Introduction Date February 07, 2008
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian DG636EQ-T1-E3 CAD Model

Description

DG636EQ-T1-E3 - Low Voltage Analog Switch

The DG636EQ-T1-E3 is designed for low voltage applications, providing efficient switching capabilities alongside reduced power consumption, making it perfect for portable and battery-operated devices.

  • Applications/Projects:
    • Portable electronics
    • Battery management systems
    • Consumer electronics
    • Signal multiplexing
  • Features and Benefits:
    • Operates efficiently at low voltage levels
    • Reduces power loss with low on/off leakage
    • Compact design for space-constrained projects
  • Additional Details:
    • Package type: TSSOP
    • Optimized for 3V operations
    • RoHS compliant for environmental safety
