The 1033153-DG212BDJ-E3 is a tube/rail packaged component with 4 circuits and an SPST - NO switch circuit. This component is from Vishay.

• Circuits: 4
• Switch Circuit: SPST - NO
• Popularity: Medium
• Supply and Demand Status: Balanced
• Charge Injection: 1pC
• Crosstalk: -95dB @ 100kHz
• Channel-to-Channel Matching (ΔRon): 2 Ohm
• Max On Resistance: 85 Ohm
• Temperature Range: -40°C to 85°C (TA)

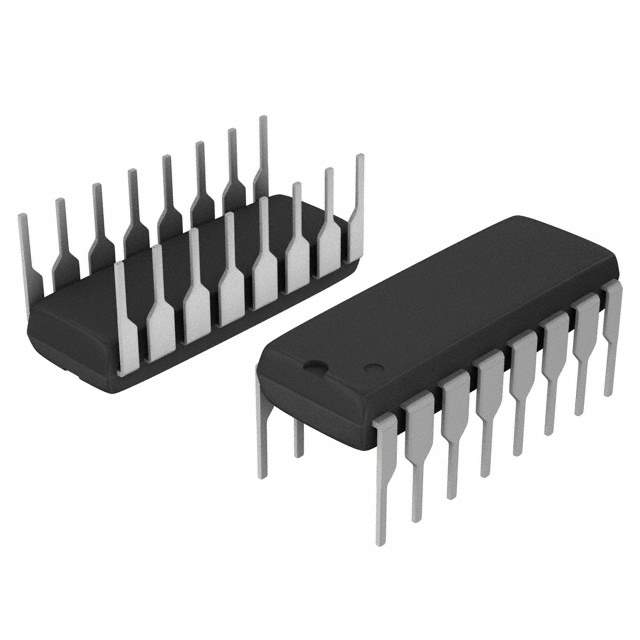

• Package: 16-PDIP
• Single Supply Voltage (V+): 4.5 V to 25 V
• Dual Supply Voltage (V±): ±4.5 V to 22 V
• Max Switch Time (Ton,Toff): 300ns, 200ns
• Channel Capacitance (CS off, CD off): 5pF, 5pF
• Max Leakage Current (IS off): 500pA
