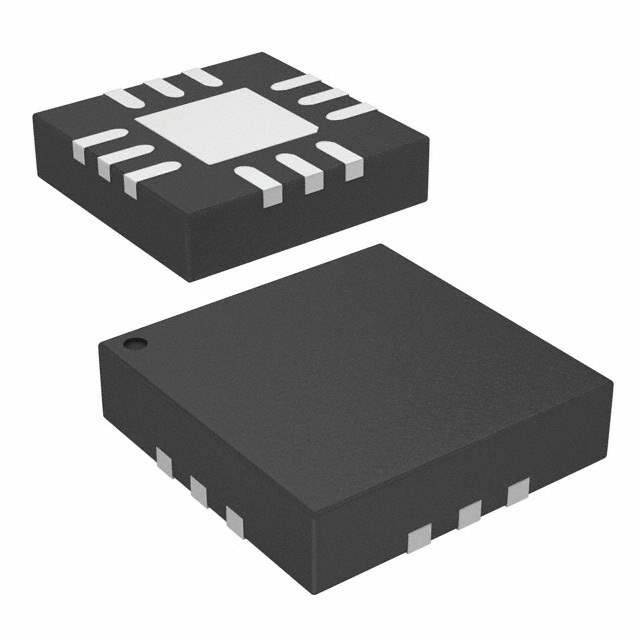

DG2034DN-T1-E4 Real Image
Same model may have multiple batches, images only for reference.

DG2034DN-T1-E4

Part No DG2034DN-T1-E4
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SP4T X 1 5.5OHM 12QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Vishay
Package Tape & Reel
Product Status Obsolete
Switch Circuit SP4T
Number of Circuits 1
On-State Resistance (Max) 5.5Ohm
Channel-to-Channel Matching (ΔRon) 160mOhm
Voltage - Supply, Single (V+) 1.8V ~ 5.5V
Switch Time (Ton, Toff) (Max) 30ns, 20ns
Charge Injection -4.4pC
Channel Capacitance (CS(off), CD(off)) 13pF, 43pF
Current - Leakage (IS(off)) (Max) 1nA
Crosstalk -77dB @ 1MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 12-VFQFN Exposed Pad
Supplier Device Package 12-QFN (3x3)
Base Product Number DG2034
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584663-DG2034DN-T1-E4
Ultra Librarian 3D Model Ultra Librarian DG2034DN-T1-E4 CAD Model

Description

The DG2034DN-T1-E4 is a single pole 4 throw (SP4T) analog switch from Vishay.

  • Application: Interface
  • Package: 12-QFN (3x3) with exposed pad
  • On-State Resistance (Max): 5.5 Ohms
  • Charge Injection: -4.4pC
  • Channel-to-Channel Matching (ΔRon): 160mOhm
  • Supply Voltage: 1.8V to 5.5V
  • Turn-On Time (Max): 30ns
  • Turn-Off Time (Max): 20ns
  • Mounting: Surface Mount
  • Operating Temperature: -40°C to 85°C
