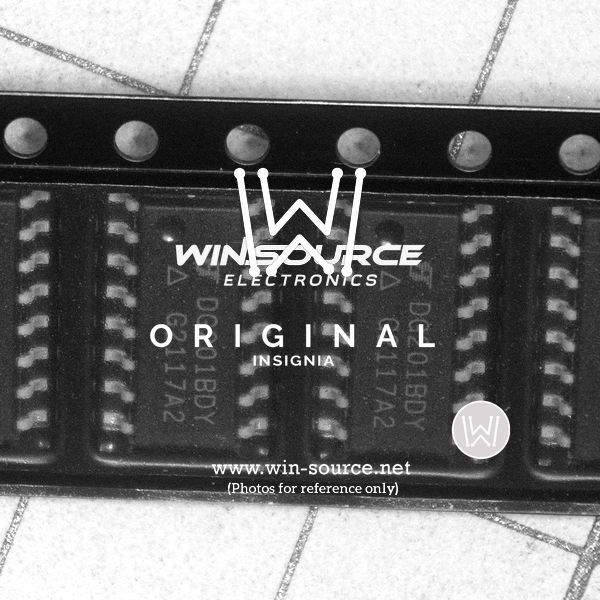

DG201BDY Real Image DG201BDY real image17880
Same model may have multiple batches, images only for reference.
DG201BDY Real Image DG201BDY real image17880
DG201BDY Real Image DG201BDY real image17880
Same model may have multiple batches, images only for reference.

DG201BDY

Part No DG201BDY
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SPST-NCX4 85OHM 16SOIC / 4 Circuit IC Switch 1:1 85Ohm 16-SOIC
Datasheet
DG201BDY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Vishay
Package Bulk
Product Status Obsolete
Switch Circuit SPST - NC
Number of Circuits 4
On-State Resistance (Max) 85Ohm
Channel-to-Channel Matching (ΔRon) 2Ohm
Voltage - Supply, Single (V+) 4.5V ~ 25V
Voltage - Supply, Dual (V±) ±4.5V ~ 22V
Switch Time (Ton, Toff) (Max) 300ns, 200ns
Charge Injection 1pC
Channel Capacitance (CS(off), CD(off)) 5pF, 5pF
Current - Leakage (IS(off)) (Max) 500pA
Crosstalk -95dB @ 100kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Base Product Number DG201
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584649-DG201BDY
Ultra Librarian 3D Model Ultra Librarian DG201BDY CAD Model

Description

The DG201BDY is an integrated circuit that falls under the category of analog switches, multiplexers, and demultiplexers.

  • Type: 4-channel SPST-NC switch
  • Maximum On-State Resistance: 85Ohm
  • Charge Injection: 1pC
  • Current Leakage: 500pA
  • Crosstalk: -95dB @ 100kHz
  • Mounting: Surface Mount
  • Single Supply Voltage: 4.5V to 25V
  • Dual Supply Voltage: ±4.5V to ±22V
  • Turn-On Switch Time: 300ns
  • Turn-Off Switch Time: 200ns
  • Channel Capacitance CS(off): 5pF
  • Channel Capacitance CD(off): 5pF
  • Package: 16-SOIC
  • Package Width: 3.90mm
  • Operating Temperature: -40°C to 85°C
  • Status: Obsolete
  • Manufacturer: Vishay
