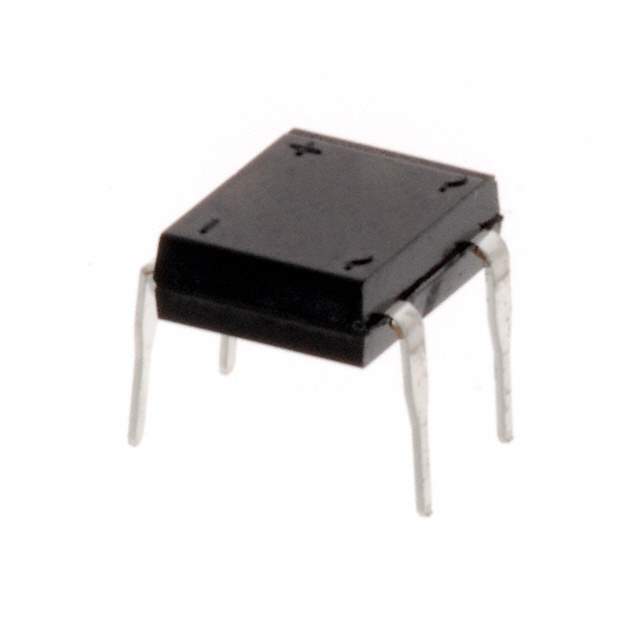

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package DFM
Win Source Part Number 014123-DF06MA-E3/45
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DF06MA-E3/45 CAD Model

Description

Product Overview

The DF06MA-E3/45 Diode Bridge Rectifier is a robust component designed for effective conversion of alternating current (AC) to direct current (DC). This model features a single-phase configuration, allowing for efficient rectification processes in various electrical circuits.

Applications

  • Power supply units
  • Battery chargers
  • Welding equipment
  • Uninterruptible power supplies (UPS)

Features and Benefits

  • Efficient Performance: Provides reliable rectification with minimal power dissipation.
  • Compact Design: Saves space in circuit designs without compromising on performance.
  • High Surge Capability: Ensures stability during power fluctuations.

Additional Details

This diode bridge rectifier is well-suited for high-density power applications, providing a perfect balance between performance and durability. It is ideal for engineers looking to optimize their circuit designs.
