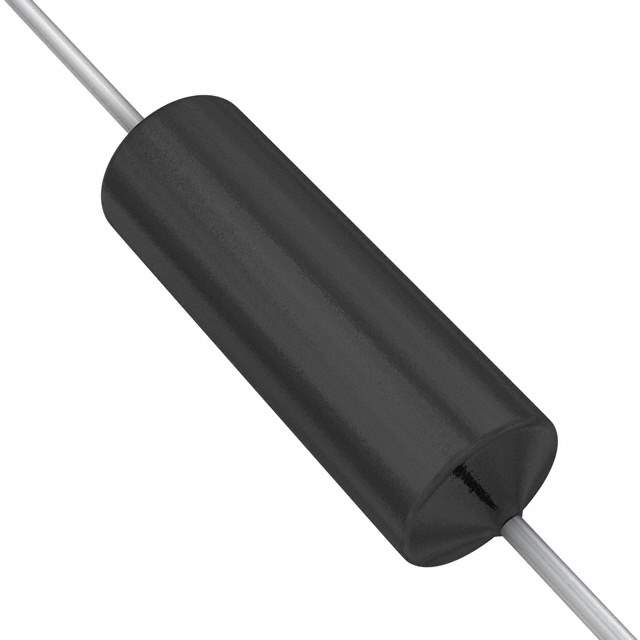

Same model may have multiple batches, images only for reference.

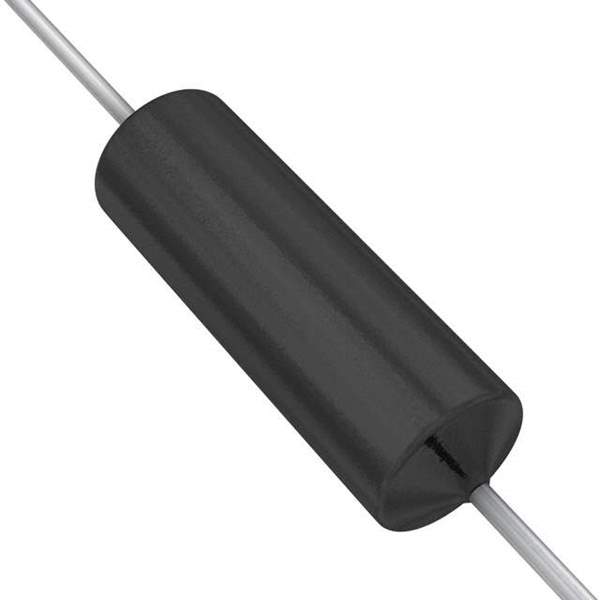

CW0056K800JE12HS Real Image
Same model may have multiple batches, images only for reference.

CW0056K800JE12HS

Part No CW0056K800JE12HS
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 6.8K OHM 6.5W 5% AXIAL / 6.8 kOhms ±5% 6.5W Through Hole Resistor Axial Moisture Resistant, Pulse Withstanding Wirewound
Datasheet
CW0056K800JE12HS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Dale
Series CW
Package Bulk
Resistance 6.8 kOhms
Tolerance ±5%
Power (Watts) 6.5W
Composition Wirewound
Features Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -65°C ~ 350°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.312" Dia x 0.875" L (7.92mm x 22.23mm)
Number of Terminations 2
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1349607-CW0056K800JE12HS
Ultra Librarian 3D Model Ultra Librarian CW0056K800JE12HS CAD Model

Description

The CW0056K800JE12HS is a wirewound through-hole resistor from Vishay Dale. Bold the product name (e.g., BAV99S,135 → CW0056K800JE12HS) and manufacturer (e.g., Nexperia USA Inc. → Vishay Dale).

  • Series: CW
  • Features: Moisture-Resistant, Pulse-withstanding
  • Resistance: 6.8 kOhms
  • Tolerance: ±5%
  • Temperature Coefficient: ±30ppm/°C
  • Power Rating: 6.5W
  • Package Type: Axial
  • Dimensions: 0.312" Dia x 0.875" L (7.92mm x 22.23mm)
  • Operating Temperature Range: -65°C to 350°C
  • Number of Terminations: Two
  • Packaging: Bulk
  • Standard Package: 100
  • Mounting Type: Through Hole
