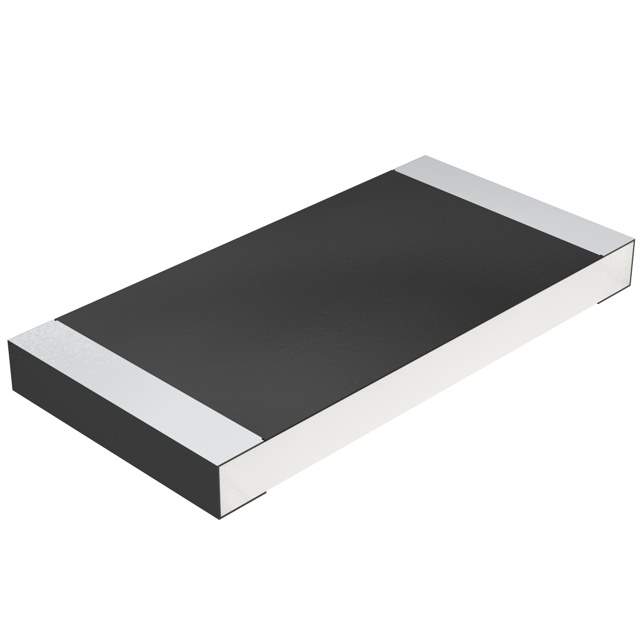

The CRCW25122K74FKTG is a thick film chip resistor from Vishay, designed for general purpose applications where a stable and reliable resistance is required. This surface mount resistor features a robust construction and excellent performance characteristics, making it suitable for a wide range of electronic circuits.

Applications

• Current limiting in LED circuits
• Pull-up and pull-down resistors in digital circuits
• Voltage dividers
• Feedback resistors in amplifier circuits
• General purpose resistance in electronic circuits
• Power supplies
• Automotive electronics
• Industrial control systems

Features

• Size 2512 (6332 metric)
• Resistance value of 2.74 kOhm
• Tolerance of ±1%
• Power rating of 1 Watt
• Thick film technology
• Surface mount design
• Operating temperature range: -55°C to +155°C
• High stability
• RoHS compliant

Benefits

• Reliable performance: Thick film technology ensures stable resistance over a wide range of operating conditions.
• Compact size: The 2512 package provides a good balance between power handling and board space.
• Easy to use: Surface mount design simplifies assembly and allows for high-density circuit layouts.
• Cost-effective: The CRCW series offers excellent performance at a competitive price.
• Wide operating temperature range: Suitable for use in harsh environments.
• Precise resistance value: 1% tolerance allows for use in applications requiring accurate resistance.

Additional Details

The CRCW25122K74FKTG conforms to all relevant industry standards and is suitable for automated placement. The resistor is supplied on tape and reel for easy handling and automated assembly. The resistor's marking consists of the resistance value. The resistor is designed to withstand reflow soldering processes according to JEDEC standards.
