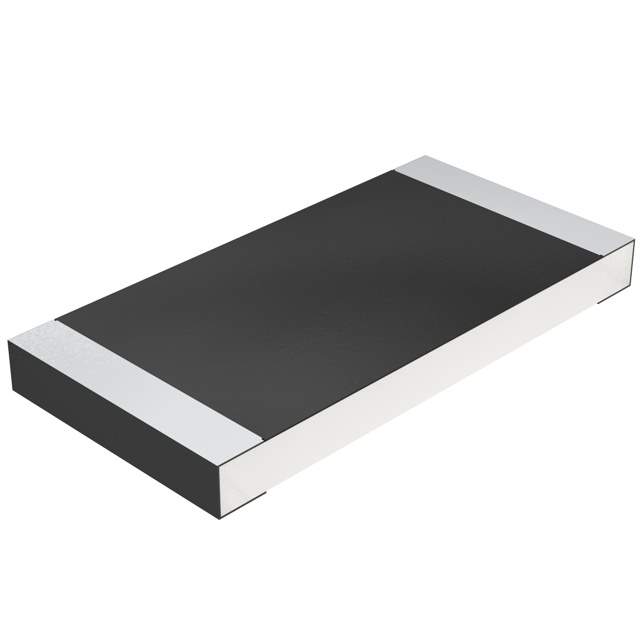

The CRCW251210R0FR67 is a thick film chip resistor from Vishay. It is designed for general-purpose applications in electronic circuits. The 2512 package signifies the dimensions of the resistor (0.25 inches long and 0.12 inches wide), which is larger than an 0805 or 1206, allowing for higher power dissipation.

Applications:

• Power Supplies: Used as current sensing resistors and bleeder resistors in power supplies.
• Industrial Equipment: Applied in industrial control systems, motor drives, and power monitoring equipment.
• Automotive Electronics: Found in automotive ECUs, lighting systems, and power distribution modules.
• Renewable Energy Systems: Employed in solar inverters and wind turbine controllers for current and voltage regulation.
• Test and Measurement Equipment: Used in power meters and load banks for current and voltage measurements.

Features:

• Surface Mount Technology (SMT): Designed for surface mounting on printed circuit boards, facilitating automated assembly.
• Thick Film Construction: Provides stable and reliable resistance values due to the robust thick film resistive element.
• 2512 Package Size: Larger package size enables higher power dissipation compared to smaller chip resistors.
• RoHS Compliant: Compliant with the Restriction of Hazardous Substances (RoHS) directive, ensuring environmental compliance.
• High Power Rating: Capable of handling higher power levels compared to smaller chip resistors.

Benefits:

• Higher Power Handling: Larger package size allows for higher power dissipation in demanding applications.
• Stable Performance: Thick film construction ensures consistent and reliable resistance values over a wide range of conditions.
• Automated Assembly: Suitable for automated pick-and-place assembly, reducing manufacturing costs.
• Environmental Compliance: RoHS compliance ensures adherence to environmental regulations.
• Improved Reliability: Offers robust performance and extended lifespan in various applications.

Additional Details:

The CRCW251210R0FR67 has a resistance value of 10 ohms. The 'F' in the part number indicates a tolerance of 1%. The resistor has a power rating (e.g., 1W) and a maximum operating voltage. These parameters are crucial for circuit design and preventing resistor failure. The resistor also has a temperature coefficient of resistance (TCR), which describes how the resistance changes with temperature. This is an important specification for applications requiring accuracy and stability over temperature variations.
