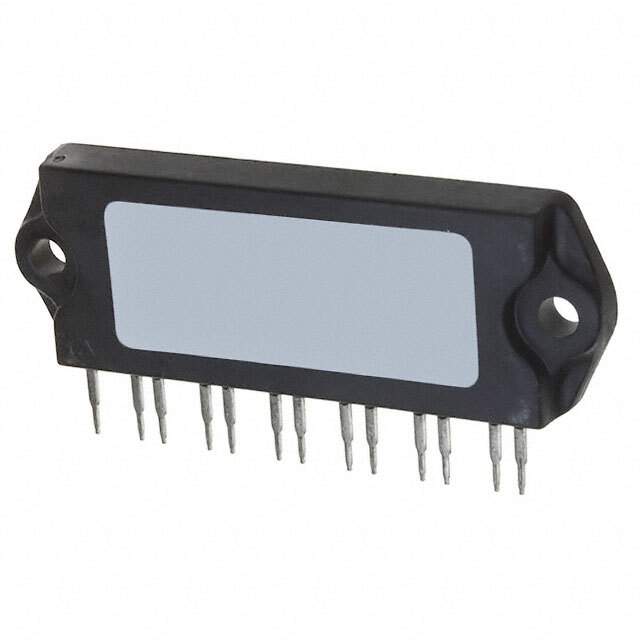

CPV362M4U Real Image
Same model may have multiple batches, images only for reference.

CPV362M4U

Part No CPV362M4U
Manufacturer Vishay
Catalog IGBTs - Modules
Description IGBT MODULE 600V 7.2A 23W IMS-2  /  IGBT Module Three Phase Inverter 600 V 7.2 A 23 W Through Hole IMS-2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 7.2 A
Power - Max 23 W
Vce(on) (Max) @ Vge, Ic 1.95V @ 15V, 7.2A
Current - Collector Cutoff (Max) 250 µA
Input Capacitance (Cies) @ Vce 530 pF @ 30 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 19-SIP (13 Leads), IMS-2
Supplier Device Package IMS-2
Base Product Number CPV362
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names VS-CPV362M4U-ND,VSCPV362M4U,VSCPV362M4U-ND,VS-CPV362M4U,*CPV362M4U
Standard Package 160
Win Source Part Number 1007175-CPV362M4U
Ultra Librarian 3D Model Ultra Librarian CPV362M4U CAD Model

Description

The Vishay General Semiconductor - Diodes Division CPV362M4U is a three-phase inverter configuration IGBT module that has a maximum power of 23W.

  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Part Name: CPV362M4U
  • Configuration: Three-phase inverter configuration IGBT module
  • Maximum Power: 23W
  • Package Type: Bulk
  • Market Popularity: High
  • Voltage Collector-Emitter Breakdown: 600V
  • Current Collector: 7.2A
  • Input Capacitance: 530pF @ 30V
  • Application: Suitable for use in various electronic applications
