CNY75A

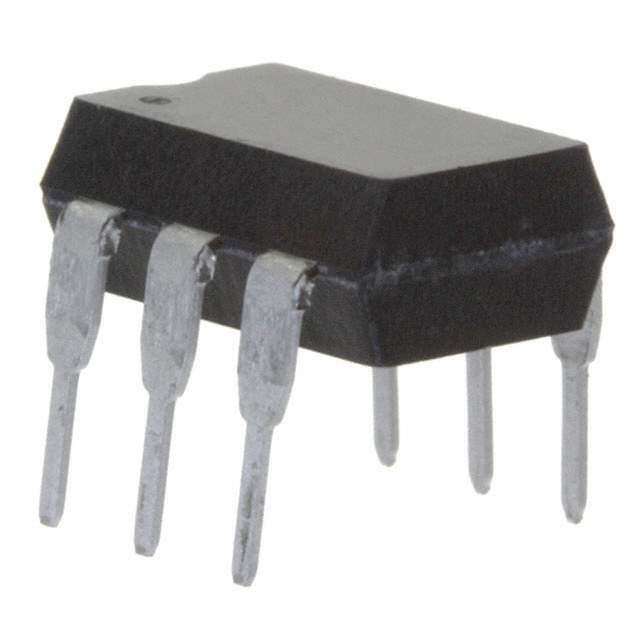

Name: CNY75A
Brand: Vishay
SKU: 444710
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CNY75A
Manufacturer	Vishay
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISO 5KV TRANS W/BASE 6DIP
Datasheet	CNY75A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Vishay
Packaging	Tube/Rail
Status	Active
Number of Channels	1
Isolation Voltage	5000Vrms
Minimum DC Current Transfer Ratio	63% @ 10mA
Maximum DC Current Transfer Ratio	125% @ 10mA
Switching Turn-On and Turn-Off Time	4.5μs, 3μs
Rise and Fall Time	2.5μs, 2.7μs
Input Type	DC
Maximum Output Voltage	70V
Channel Output Current	50mA
Forward Voltage	1.25V
Continuous forward current- Max	60mA
Vce Saturation (Max)	300mV
Temperature Range - Operating	-55°C to 110°C
Mounting	Through Hole
Case / Package	6-DIP
Win Source Part Number	1029894-CNY75A
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian CNY75A CAD Model

Description

The Vishay CNY75A is a through-hole isolator with a DC input type and a maximum isolation voltage of 5000Vrms.

Input Type: DC
Maximum Isolation Voltage: 5000Vrms
Minimum DC Current Transfer Ratio @ 10mA: 63%
Maximum DC Current Transfer Ratio @ 10mA: 125%
Switching Turn-On Time: 4.5μs
Switching Turn-Off Time: 3μs
Rise Time: 2.5μs
Fall Time: 2.7μs
Channel Output Current: 50mA
Continuous Forward Current: 60mA
Package: 6-DIP
Popularity: Medium
Supply and Demand Status: Limited
