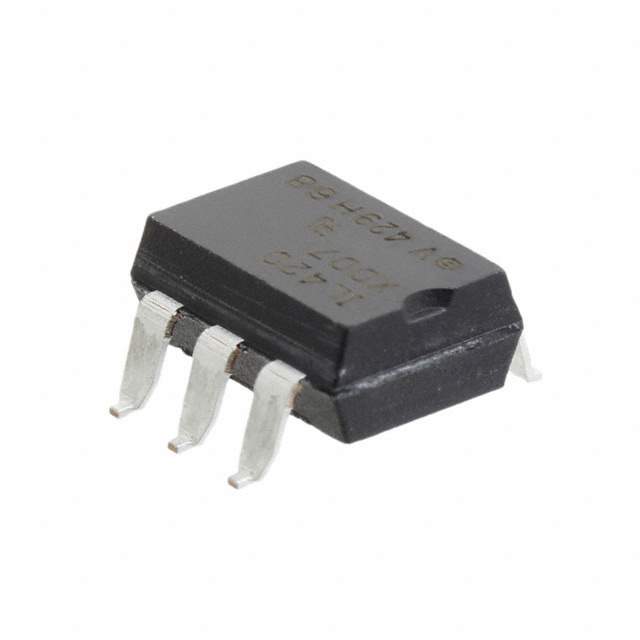

CNY17-3X009T Real Image
Same model may have multiple batches, images only for reference.

CNY17-3X009T

Part No CNY17-3X009T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SMD
Datasheet
CNY17-3X009T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 100% @ 10mA
Maximum DC Current Transfer Ratio 200% @ 10mA
Switching Turn-On and Turn-Off Time 3μs, 2.3μs
Rise and Fall Time 2μs, 2μs
Input Type DC
Maximum Output Voltage 70V
Channel Output Current 50mA
Forward Voltage 1.39V
Continuous forward current- Max 60mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 110°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 1029847-CNY17-3X009T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CNY17-3X009T CAD Model

Description

The CNY17-3X009T is an active isolator manufactured by Vishay.

  • Supply and Demand Status: Balanced
  • Input Type: 1 channel
  • Forward Voltage: 1.39V
  • Isolation Voltage: 5000Vrms
  • Maximum Output Voltage: 70V
  • DC Current Transfer Ratio: 100% (Min), 200% (Max)
  • Switching Turn-On Time: 3μs
  • Switching Turn-Off Time: 2.3μs
  • Rise Time: 2μs
  • Fall Time: 2μs
  • Package: 6-SMD
  • Temperature Range: -55°C to 110°C
