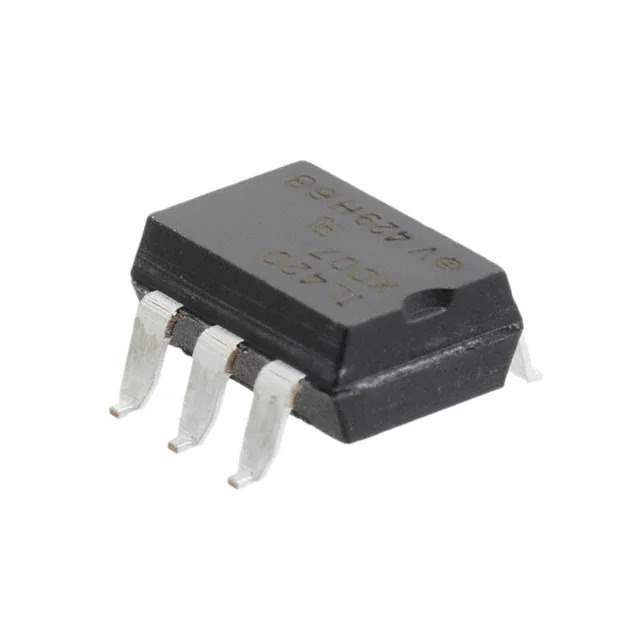

Same model may have multiple batches, images only for reference.

CNY17-3X007

Name: CNY17-3X007
Brand: Vishay
SKU: 579941
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CNY17-3X007
Manufacturer	Vishay
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISO 5KV TRANS W/BASE 6SMD / Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Datasheet	CNY17-3X007 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr	Vishay
Package	Tube
Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	DC
Output Type	Transistor with Base
Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.39V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Temperature Range - Operating	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
Base Product Number	CNY17
Standard Package	50 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	579941-CNY17-3X007
Ultra Librarian 3D Model	Ultra Librarian CNY17-3X007 CAD Model

Description

The CNY17-3X007 is a high-performance optoisolator transistor designed for use in electronic circuits.

Output Type: transistor with base output
Input: DC
Maximum Forward Current: 60 mA
Forward Voltage: 1.39V
Rise and Fall Time: 2μs (typical)
Channels: one
Voltage Isolation: 5000Vrms
Current Transfer Ratio: 100% @ 10mA
Maximum Output Voltage: 70V
Vce Saturation: 400mV
Current Transfer Ratio @ 10mA: 200%
Turn-On Time: 3μs
Turn-Off Time: 2.3μs
Mounting: surface mountable
Temperature Range: -55°C to 110°C
Manufacturer: Vishay
Product Status: active
