Same model may have multiple batches, images only for reference.

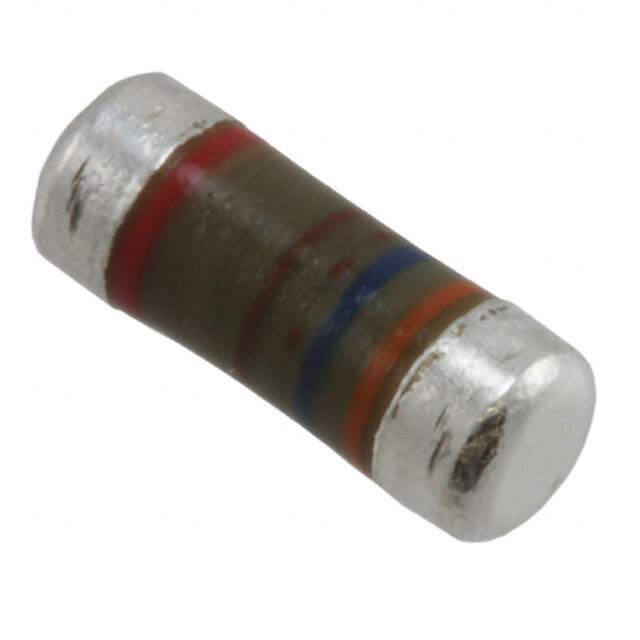

CMB02070X2209GB200 Real Image
Same model may have multiple batches, images only for reference.

CMB02070X2209GB200

Part No CMB02070X2209GB200
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 22 OHM 2% 1W MELF 0207 / 22 Ohms ±2% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Carbon Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series CMB
Package Tape & Reel
Resistance 22 Ohms
Tolerance ±2%
Power (Watts) 1W
Composition Carbon Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0207
Supplier Device Package 0207
Ratings AEC-Q200
Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.10.0042
Other Names 749-1396-1,749-1396-2,749-1396-6
Standard Package 2,000
Win Source Part Number 1052577-CMB02070X2209GB200
Ultra Librarian 3D Model Ultra Librarian CMB02070X2209GB200 CAD Model

Description

The Vishay CMB02070X2209GB200 is a chip resistor with a resistance of 22 ohms and a power rating of 1W.

  • Resistance: 22 ohms
  • Power Rating: 1W
  • Tolerance: ±2%
  • Composition: Carbon film
  • Features: Anti-sulfur, Automotive AEC-Q200 compliant
  • Temperature Range: -55°C to 155°C
  • Packaging: Tape & Reel
  • Dimension: 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
  • Package: MELF, 0207
