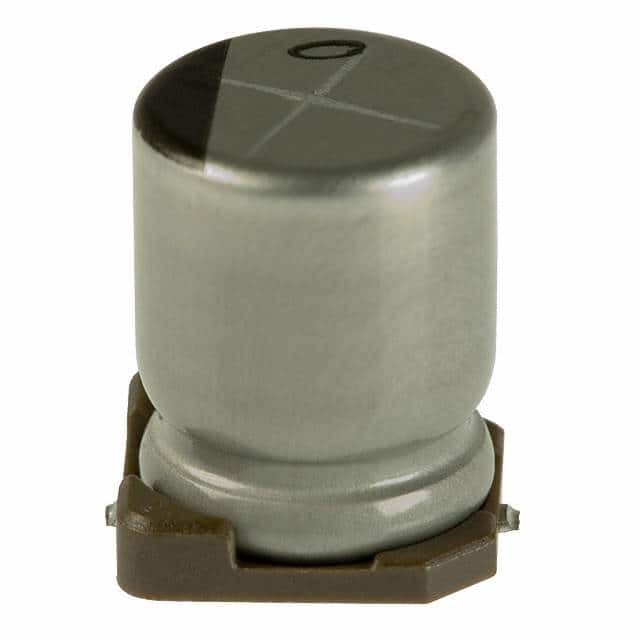

Same model may have multiple batches, images only for reference.
UUD1V221MNR1GS
Same model may have multiple batches, images only for reference.

UUD1V221MNR1GS

Part No UUD1V221MNR1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 35V SMD / 220 μF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UUD1V221MNR1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Product Status Obsolete
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 225 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 100 kHz
Impedance 170 mOhms
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 938377-UUD1V221MNR1GS
Ultra Librarian 3D Model Ultra Librarian UUD1V221MNR1GS CAD Model

Description

The UUD series Aluminum Electrolytic Capacitor is a high-quality electronic component designed for automotive applications.

  • Manufacturer: Nichicon
  • Capacitance: 220μF
  • Voltage Rating: 35V
  • Package: Tape and reel
  • Size Diameter: 0.315" (8.00mm)
  • Height Seated: 0.413" (10.50mm)
  • Tolerance: ±20%
  • Lifetime: 5000 hours @ 105°C
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Status: Obsolete
