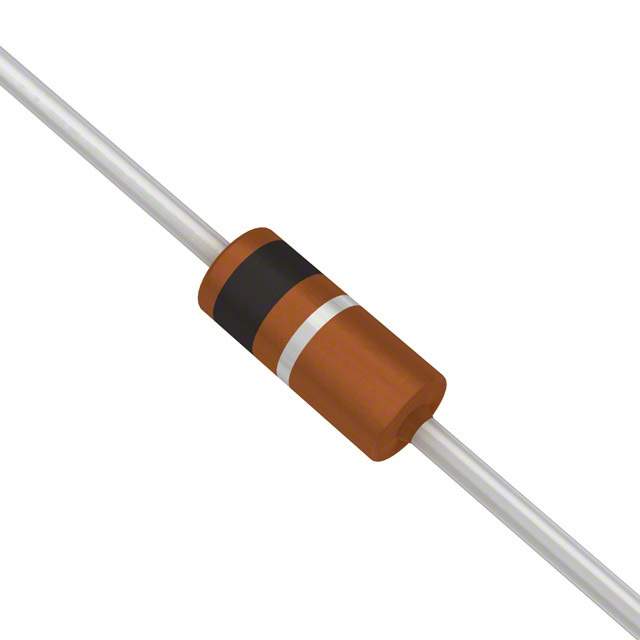

BZX55B56-TR

Part No BZX55B56-TR
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 56V 500MW DO35
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Reel
Voltage - Zener (Nom) (Vz) 56V
Tolerance ±2%
Power - Max 500mW
Impedance (Maximum) (Zzt) 135 Ohms
Current - Reverse Leakage at Vr 100nA at 43V
Voltage - Forward (Vf) (Maximum) at If 1.5V at 200mA
Temperature Range - Operating -65°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package DO-204AH, DO-35, Axial
Supplier Device Package DO-35
Manufacturer Pack Quantity 30,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800635-BZX55B56-TR
Ultra Librarian 3D Model Ultra Librarian BZX55B56-TR CAD Model

Description

The BZX55B56-TR is a zener diode designed to operate as a voltage regulator.

  • Zener Voltage: 56V
  • Tolerance: ±2%
  • Maximum Power: 500mW
  • Package Type: DO-35
  • Mounting: Through-hole
  • Maximum Forward Voltage: 1.5V @ 200mA
  • Maximum Reverse Leakage Current: 100nA @ 43V
  • Popularity: Yes
  • Supply and Demand Status: Sufficient
  • Operating Temperature: -65°C to 175°C
