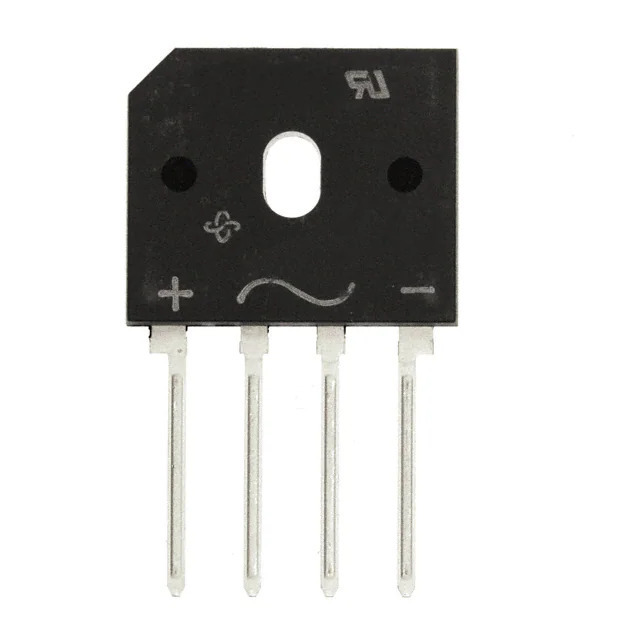

Same model may have multiple batches, images only for reference.
BU2006-M3/45 Vishay
Same model may have multiple batches, images only for reference.

BU2006-M3/45

Part No BU2006-M3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 600V 20A BU
Datasheet
BU2006-M3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 20 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 10 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, BU
Supplier Device Package isoCINK+™ BU
Base Product Number BU2006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368103-BU2006-M3/45
Ultra Librarian 3D Model Ultra Librarian BU2006-M3/45 CAD Model

Description

The 1368103-BU2006-M3/45 is a bridge rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Package / Case: 4-SIP
  • Base Product Number: BU2006
  • Temperature Range: -55°C to 150°C
  • Average Rectified Current: 20 A
  • Voltage Forward Drop: 1.05 V @ 10 A
  • Current Reverse Leakage @ Vr: 5 µA @ 600 V
  • Diode Type: Single-Phase
  • Voltage Peak Reverse: 600 V
  • RoHS: Yes
  • REACH Status: Unaffected
  • Product Status: Active
  • Mounting Type: Through Hole
