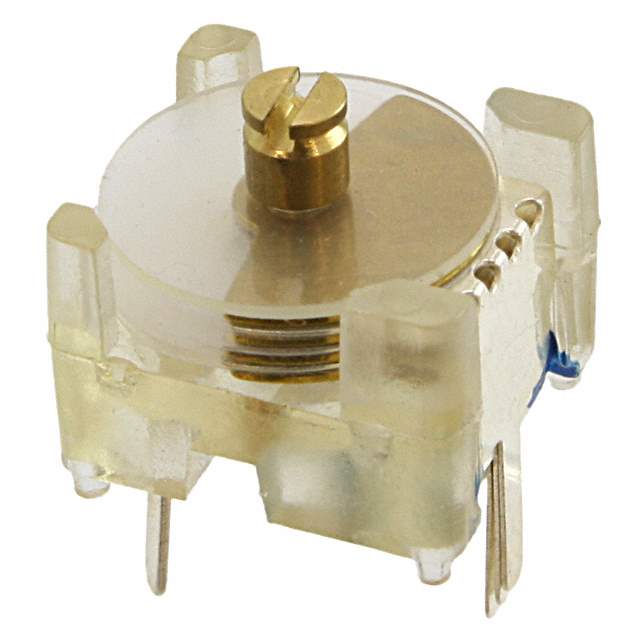

BFC280908003 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Trimmers, Variable Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series BFC2 809
Package Bulk
Capacitance Range 5 ~ 57pF
Adjustment Type Top and Bottom
Voltage - Rated 250 V
Dimension 0.429" L x 0.413" W (10.90mm x 10.50mm)
Height - Seated (Max) 0.433" (11.00mm)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Features General Purpose
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.30.0090
Other Names BC2776
Standard Package 350
Win Source Part Number 1004095-BFC280908003
Ultra Librarian 3D Model Ultra Librarian BFC280908003 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components trimmer capacitor is a variable capacitor that is used to adjust the capacitance of a circuit. Bold the product name (e.g., BAV99S,135 → trimmer capacitor) and manufacturer (e.g., Nexperia USA Inc. → Vishay Beyschlag/Draloric/BC Components).

  • Capacitance Range: 5 ~ 57pF
  • Voltage Rating: 250V
  • Temperature Range: -40°C to 125°C
  • Mounting: Through a hole
  • Height: 11.00mm
  • Package: 350
