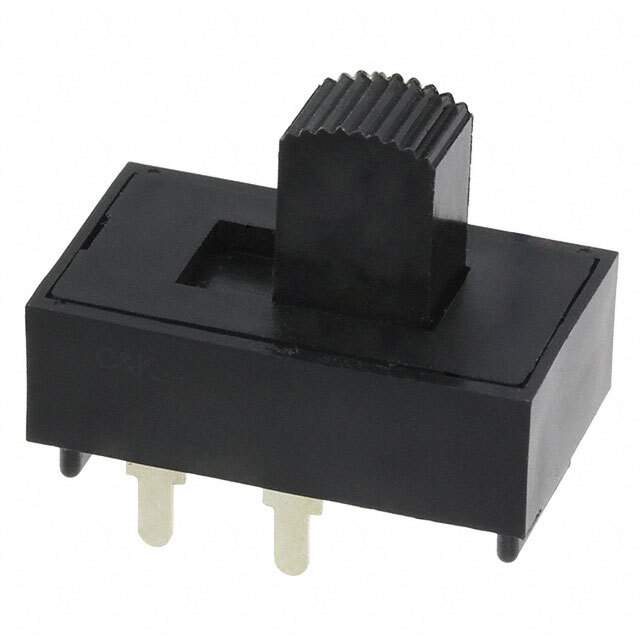

S101031MS02Q Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit SPST
Contact Timing Not Specified
Switch Function On-Off
Current Rating (Amps) 6A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Standard
Actuator Length 8.51mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S101031
Other Names CKN10658,*S101031MS02Q,S101031MS02Q
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233145-S101031MS02Q
Ultra Librarian 3D Model Ultra Librarian S101031MS02Q CAD Model

Description

The S101031MS02Q slide switch from C&K is a SPST switch with a standard actuator type and an actuator length of 8.51mm.

  • Actuator Type: Standard
  • Actuator Length: 8.51mm
  • Voltage Rating (AC/DC): 125V AC and DC
  • Current Rating (AC): 6A
  • Current Rating (DC): 1A
  • Mounting Type: Through-Hole
  • Operating Temperature: -30°C to 65°C
  • Mechanical Life: 10,000 cycles
  • Electrical Life: 10,000 cycles
  • Contact Finish: Silver
  • Contact Material: Copper
  • Actuator Material: Polyamide (PA66), Nylon 6/6
  • Switch Function: On-Off
  • Switch Travel: 4.57mm
