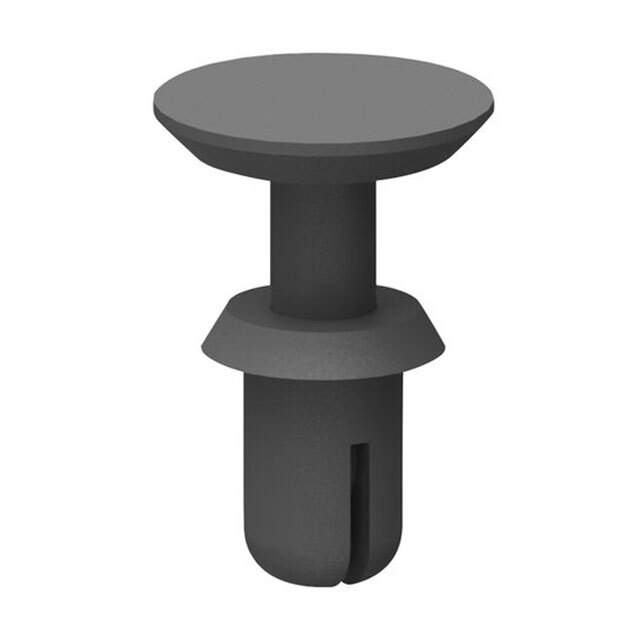

SRH-3545 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories>Rivets
Mfr Essentra Components
Series Richco, SRH
Package Bulk
Type Snap Rivet
Rivet Diameter 0.138" (3.51mm)
Rivet Length 0.260" (6.60mm)
Head Diameter 0.252" (6.40mm)
Head Height 0.039" (0.99mm)
Hole Diameter 0.144" (3.66mm)
Grip Range 0.079" ~ 0.118" (2.01mm ~ 3.00mm)
Color Black
Material Nylon
Other Names 61100244,RPC5173,SRH-3545,SRH-3545R,SRH3545
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Win Source Part Number 1275060-SRH-3545
Ultra Librarian 3D Model Ultra Librarian SRH-3545 CAD Model

Description

The Richco snap rivet is a hardware, fastener, and accessory product used to join two pieces of material together.

  • Material: Nylon
  • Color: Black
  • Rivet Diameter: 0.138" (3.51mm)
  • Rivet Length: 0.260" (6.60mm)
  • Head Diameter: 0.252" (6.40mm)
  • Head Height: 0.039" (0.99mm)
  • Hole Diameter: 0.144" (3.66mm)
  • Grip Range: 0.079" ~ 0.118" (2.01mm ~ 3.00mm)
  • Package: Bulk
  • Standard Package: 1,000
  • MSL Level: Not applicable
  • REACH Status: REACH unaffected
  • HTSUS: 3926.90.9985
  • Manufacturer: Essentra Components
  • Other Names: 61100244, RPC5173, SRH-3545, SRH-3545R, SRH3545
