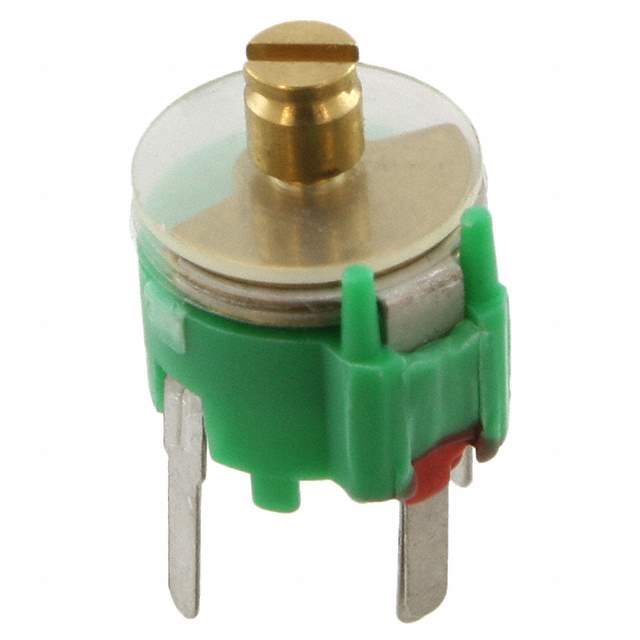

BFC280811229 Real Image
Same model may have multiple batches, images only for reference.

BFC280811229

Part No BFC280811229
Manufacturer Vishay
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 2.5-22PF 250V TH / 2.5 ~ 22pF Trimmer Capacitor 250 V Top and Bottom Through Hole
Datasheet
BFC280811229 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Trimmers, Variable Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series BFC2 808
Package Bulk
Capacitance Range 2.5 ~ 22pF
Adjustment Type Top and Bottom
Voltage - Rated 250 V
Dielectric Material Polypropylene (PP)
Dimension 0.299" Dia (7.60mm)
Height - Seated (Max) 0.394" (10.00mm)
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Through Hole
Features General Purpose
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.30.0090
Other Names BC2768
Standard Package 1,400
Win Source Part Number 1139658-BFC280811229
Ultra Librarian 3D Model Ultra Librarian BFC280811229 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components BFC2 808 series capacitor trimmer is a general-purpose electronic component.

  • Capacitance Range: 2.5 ~ 22pF
  • Voltage: Rated @ 250V
  • Dielectric Material: Polypropylene (PP)
  • Adjustment Type: Top and bottom
  • Mounting: Through a hole
  • Operating Temperature Range: -40°C ~ 70°C
  • Height: 0.394" (10.00mm)
  • Package: Bulk
  • Standard Package: Includes 1,400 units
  • Alternative Parts (cross-reference): BFC2808 11229
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8532.30.0090
