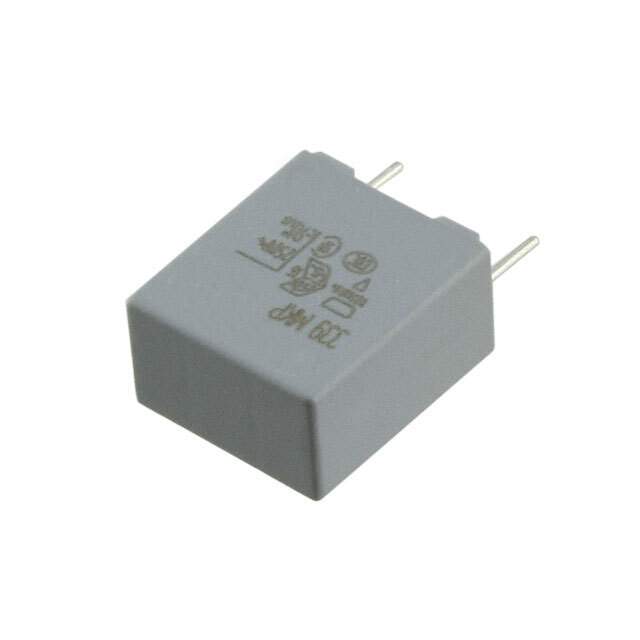

BFC233990014 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP339
Package Bulk
Capacitance 10000 pF
Tolerance ±20%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.689" L x 0.197" W (17.50mm x 5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200, X2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0020
Other Names 222233990014
Standard Package 1,000
Win Source Part Number 983886-BFC233990014
Ultra Librarian 3D Model Ultra Librarian BFC233990014 CAD Model

Description

The Vishay MKP339 film capacitor is a high-quality electronic component designed for use in automotive and EMI, RFI suppression applications.

  • Manufacturer: Vishay
  • Ratings: AEC-Q200 and X2 ratings
  • Capacitance: 10000 pF
  • Tolerance: ±20%
  • Mounting Type: Through-hole
  • Package: Radial package
  • Termination: PC pins
