Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) 250mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 100nA @ 150V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package MicroMELF
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 116717-BAV302-TR3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAV302-TR3 CAD Model

Description

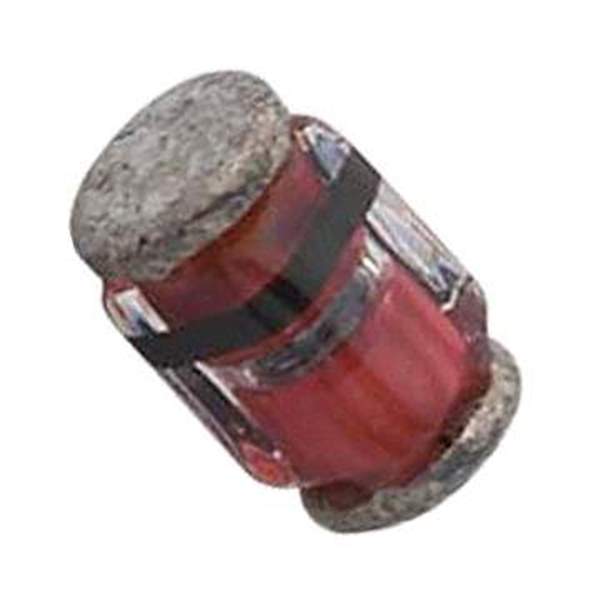

BAV302-TR3 - Versatile Rectifier Diode

The BAV302-TR3 diode is specially designed for rectification purposes in a vast array of electronic devices. Its efficient operation and small footprint make it a component of choice in both consumer and industrial applications.

  • Reverse Voltage: 100V
  • Forward Current: 200mA
  • SOT-23 Package

Applications:

  • Power Rectification
  • Voltage Clamping
  • Protective Circuits

Features & Benefits:

  • High Efficiency
  • Small Form Factor
  • Low Forward Voltage Drop
  • Improved System Stability
