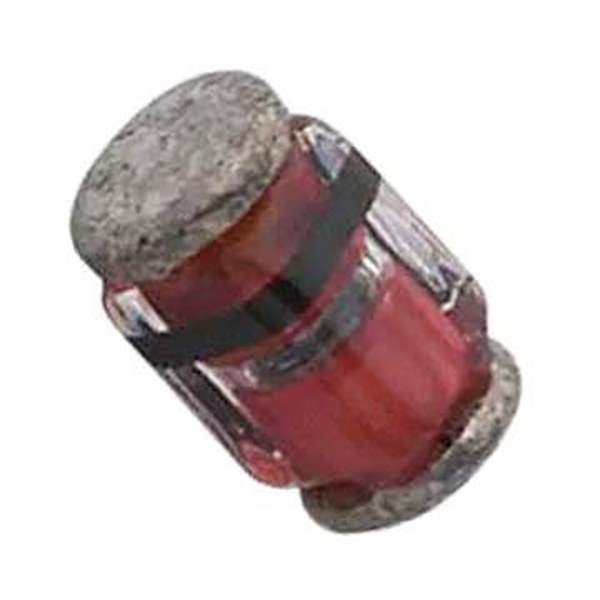

BAV301-TR Real Image
Same model may have multiple batches, images only for reference.

BAV301-TR

Part No BAV301-TR
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GP 100V 250MA MICROMELF
Datasheet
BAV301-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 250mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 100 V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Supplier Device Package MicroMELF
Operating Temperature - Junction 175°C (Max)
Base Product Number BAV301
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 569011-BAV301-TR
Ultra Librarian 3D Model Ultra Librarian BAV301-TR CAD Model

Description

The 569011-BAV301-TR is a standard rectifier diode from Vishay.

  • Series: BAV301 series
  • Designed for: automotive applications and meets the AEC-Q101 standard
  • Voltage Rating: 100V
  • Current Rating: 250mA
  • Forward Voltage Drop: 1V @ 100mA
  • Reverse Recovery Time: 50ns
  • Mounting: surface mountable
  • Package: tape and reel package of 2,500 pcs
  • Housing: 2-SMD, no lead package
  • Commonly used in: automotive electronics, such as powertrain control modules, body control modules, and lighting systems
  • Function: provides reliable rectification of AC signals and helps protect sensitive electronic components from reverse voltage
