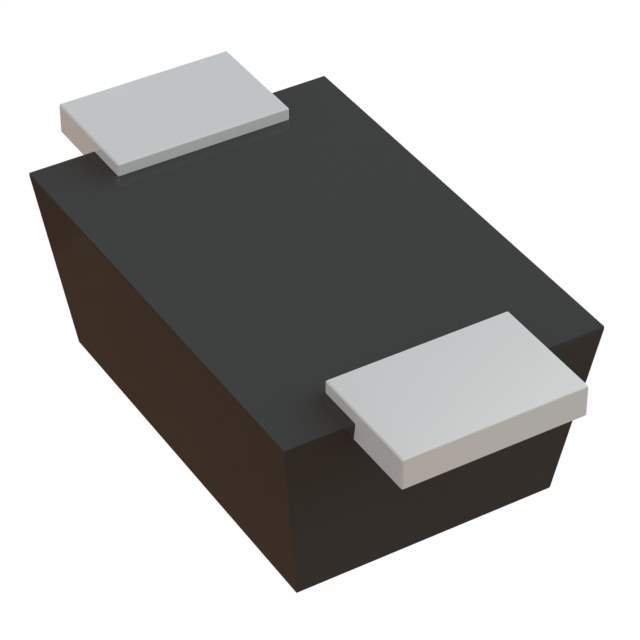

BAT54W-HG3-08 Vishay General Semiconductor - Diodes Division BAT54W-HG3-08 Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.
BAT54W-HG3-08 Vishay General Semiconductor - Diodes Division BAT54W-HG3-08 Vishay General Semiconductor - Diodes Division
BAT54W-HG3-08 Vishay General Semiconductor - Diodes Division BAT54W-HG3-08 Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

BAT54W-HG3-08

Part No BAT54W-HG3-08
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SOD123
Datasheet
BAT54W-HG3-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay General Semiconductor - Diodes Division
Part Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 800 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Ultra Librarian 3D Model Ultra Librarian BAT54W-HG3-08 CAD Model

Description

FEATURES

• These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges

• For general purpose applications

• AEC-Q101 qualified available

• Molding compound meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level (MSL) 1

• Base P/N-G3 - green, commercial grade

• Base P/N-HG3 - green, automotive grade
