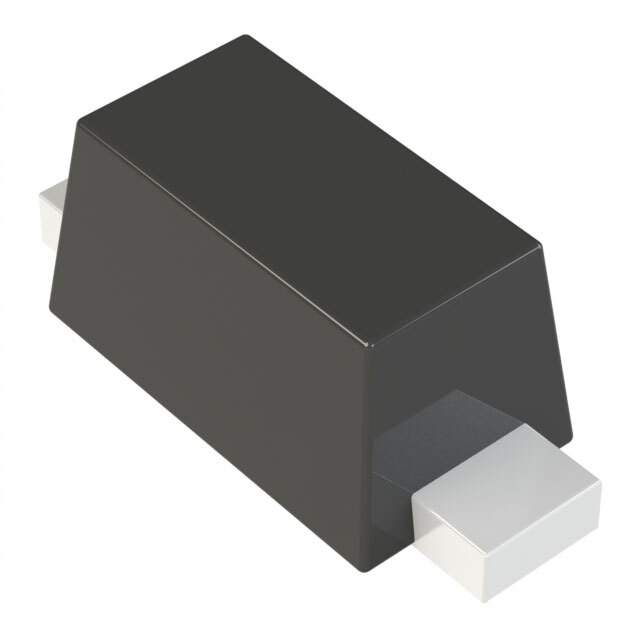

BAT54-02V-V-G-08 Real Image
Same model may have multiple batches, images only for reference.

BAT54-02V-V-G-08

Part No BAT54-02V-V-G-08
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Small Signal Schottky 30V 0.2A 5ns 2-Pin SOD-523 T/R / DIODE SCHOTTKY 30V 200MA SOD523
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 800mV @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-523
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1022160-BAT54-02V-V-G-08
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name BAT54-02V
Introduction Date November 24, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BAT54-02V-V-G-08 CAD Model

Description

The BAT54-02V-V-G-08 by Vishay is a SOD-523 packaged Schottky diode that has a maximum DC reverse voltage of 30V and can handle an average rectified current of 200mA.

  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 200mA
  • Forward Voltage: 800mV @ 100mA
  • Reverse Recovery Time: 5ns
  • Capacitance: 10pF @ 1V and 1MHz
  • Reverse Leakage Current: 2μA @ 25V
  • Operating Temperature Range: -55°C to 125°C
  • Halogen-Free Standards: Compliant
  • Application: Discrete Semiconductor Applications
