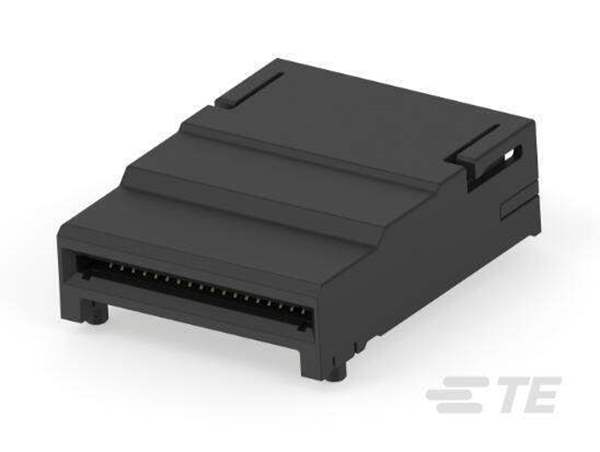

2372133-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Pluggable Connectors Pluggable Connector Assemblies
Product Status Active
Connector Style Receptacle
Connector Type QSFP-DD (Double Density)
Number of Positions 76
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Win Source Part Number WS1207231-2372133-1
Ultra Librarian 3D Model Ultra Librarian 2372133-1 CAD Model

Description

This specification covers the requirements for application of the 76 position QSFP-DD and QSFP-DD 112 PC board connector. The connector consists of a housing with right-angle surface-mount contacts having pitch on 0.8mm centerlines. The connector features a paddle card entry slot that accepts 1.00±0.10 thick integrated circuit card housed in a plug body and alignment posts for stability of placement of the connector on the PC board. The connector is mounted on host PC board and is used on coordination with an EMI cage attached to the same PC board. The cage provides proper alignment to the connector.
