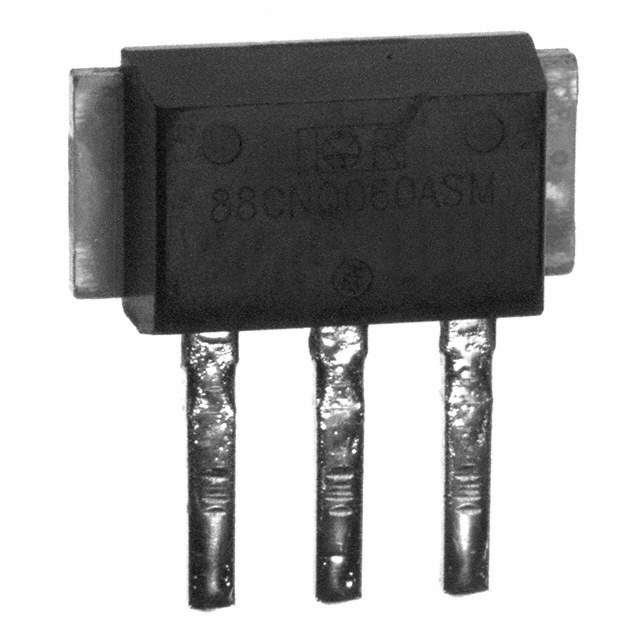

88CNQ060ASM Real Image
Same model may have multiple batches, images only for reference.

88CNQ060ASM

Part No 88CNQ060ASM
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 60V D618SM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 60V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 580mV at 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 640μA at 60V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package D-61-8-SM
Supplier Device Package D-61-8-SM
Family Part Number 88CNQ060
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1134088-88CNQ060ASM
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 88CNQ060ASM CAD Model

Description

The Vishay 88CNQ060ASM is a through-hole Schottky diode that comes in a bulk package. It is part of the 88CNQ060 family and has a current rating of 40A and a maximum reverse voltage of 60V.

  • Mounting Type: Through Hole
  • Package: Bulk
  • Series: 88CNQ060
  • Current Rating: 40A
  • Maximum Reverse Voltage: 60V
  • Operating Temperature: -55°C to 150°C
  • Diode Configuration: 1 Pair Common Cathode
  • Product Status: Obsolete
  • Supply and Demand Status: Limited
  • REACH: Unaffected
  • Category: Discrete Semiconductor Products
  • ECCN: EAR99
