Same model may have multiple batches, images only for reference.

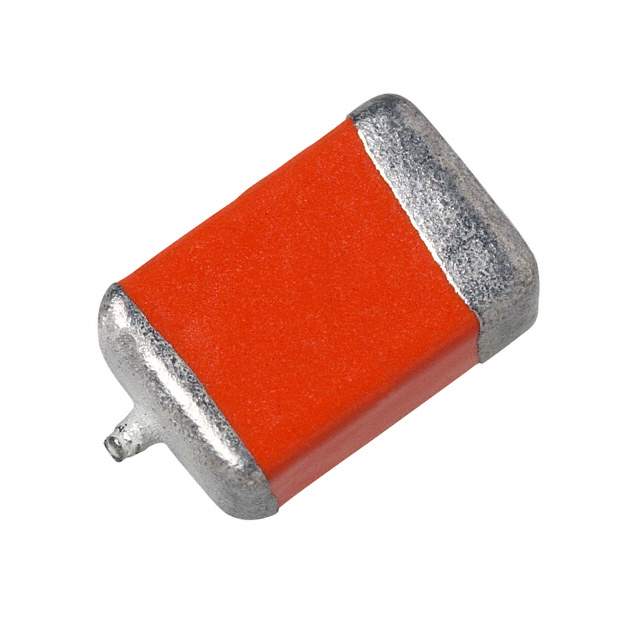

594D337X9010R2T Real Image
Same model may have multiple batches, images only for reference.

594D337X9010R2T

Part No 594D337X9010R2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 330UF 10% 10V 2824
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Sprague
Packaging Reel
Capacitance 330μF
Tolerance ±10%
Voltage - Rated 10V
Type Conformal Coated
ESR (Equivalent Series Resistance) 45mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 2824 (7260 Metric)
Dimension 0.283" L x 0.236" W (7.20mm x 6.00mm)
Height - Seated (Maximum) 0.148" (3.75mm)
Manufacturer Size Code R
Features General Purpose
Manufacturer Pack Quantity 600
MSL Level 2A (4 Weeks)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811697-594D337X9010R2T
Ultra Librarian 3D Model Ultra Librarian 594D337X9010R2T CAD Model

Description

The Vishay Sprague 594D337X9010R2T from Vishay Sprague is a conformal coated type general-purpose capacitor.

  • Capacitor Type: General Purpose
  • Packaging: Reel
  • Mounting Style: SMD
  • Capacitance: 330μF
  • Tolerance: ±10%
  • Voltage Rating: 10V
  • ESR (Equivalent Series Resistance): 45mOhm
  • Manufacturer Size Code: R
  • Dimension: 0.283 inches L x 0.236 inches W (7.20mm x 6.00mm)
  • Manufacturer Package: 2824 (7260 Metric)
  • Height Seated (Maximum): 0.148 inches (3.75mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 600
  • MSL Level: 2A (4 Weeks)
  • Lifetime at Temp.: -
