Products specifications

Categories Capacitors
Manufacturer Vishay Sprague
Series TANTAMOUNT, 593D
Packaging Reel package
Capacitance 330μF
Tolerance ±10%
Voltage Rating DC 10V
Type Molded
ESR (Equivalent Series Resistance) 100 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.170" (4.32mm)
Manufacturer Size Code E
Features General
Win Source Part Number 764110-593D337X9010E2TE3
Family Name 593D
Introduction Date September 25, 2001
ECCN EAR99
Country of Origin Israel, China
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 593D337X9010E2TE3 CAD Model

Description

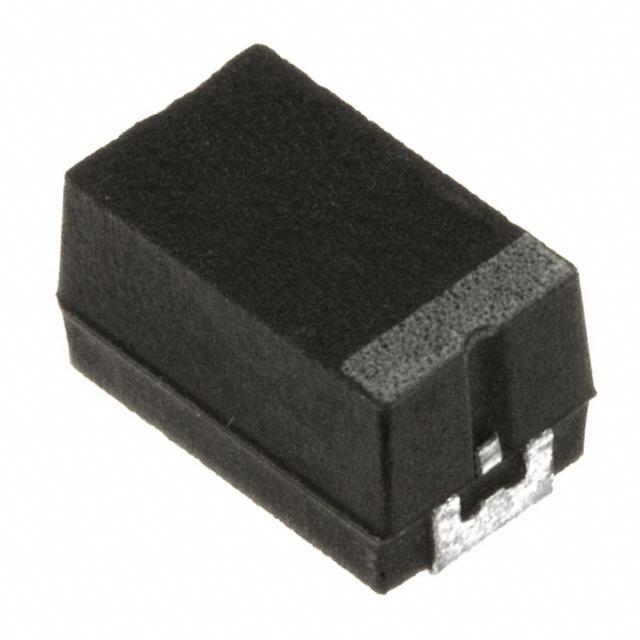

593D337X9010E2TE3 from Vishay is a tantalum capacitor used in designs that need stable capacitance, compact board footprint, and dependable filtering or bulk energy storage in space-constrained electronics. Components in this category are commonly selected for power rail decoupling, DC-DC converter support, industrial control boards, telecom hardware, and embedded systems where volumetric efficiency matters. This part is relevant for engineers maintaining legacy Vishay-based designs or qualifying approved alternates in regulated procurement flows. Because the lifecycle status provided for 593D337X9010E2TE3 is unknown, teams should confirm current production status directly with Vishay or authorized channels before committing it into new designs. RoHS compliance information is not available from the input provided, so environmental compliance should also be verified against the latest datasheet, manufacturer declaration, or distributor compliance documentation. For sourcing teams, this part is best approached with a verification-first strategy covering stock, traceability, and compliance evidence.
