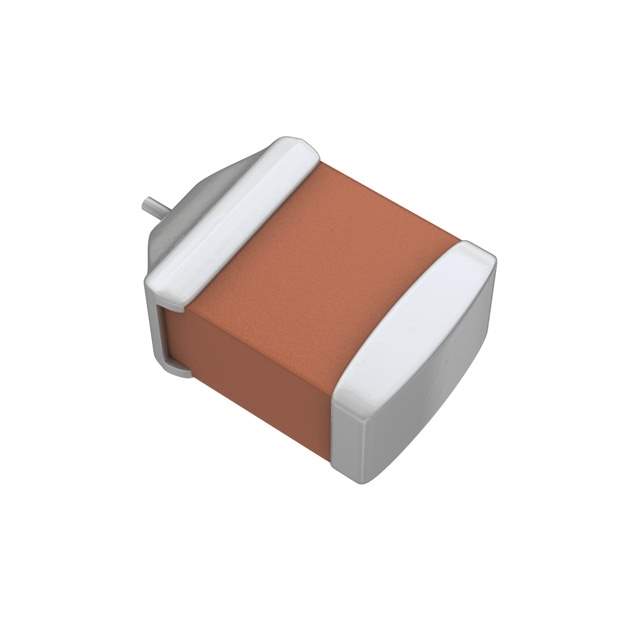

The Vishay 592D336X0016D2T15H is a surface-mount solid tantalum capacitor designed for general-purpose applications. It is part of the 592D series, known for its reliability, stable performance, and volumetric efficiency. These capacitors are commonly used in power filtering, bypass, and coupling applications within electronic circuits.

Applications

• Power supply filtering
• Bypass capacitor in digital circuits
• Coupling capacitor in audio circuits
• Timing circuits
• General purpose applications in electronic circuits

Features

• Solid tantalum construction: Provides excellent stability and reliability.
• Surface mount design: Facilitates automated assembly and reduces board space.
• Molded case: Offers robust protection against environmental factors.
• Low ESR (Equivalent Series Resistance): Enhances filtering performance and reduces power dissipation.
• Stable electrical characteristics: Ensures consistent performance over a wide range of temperatures and frequencies.

Benefits

• High reliability: Solid tantalum construction provides long-term stability and reliability.
• Space-saving design: Surface mount package minimizes board space requirements.
• Improved filtering performance: Low ESR contributes to effective noise reduction and power supply filtering.
• Stable operation: Consistent electrical characteristics ensure predictable circuit behavior.
• Easy assembly: Surface mount design simplifies automated assembly processes.

Additional Details

The 592D336X0016D2T15H has a capacitance of 33 µF, a voltage rating of 16 VDC, and a tolerance of ±20%. It is housed in a D case size. It operates over a temperature range of -55°C to +125°C. This capacitor is suitable for applications where stable performance, reliability, and small size are critical. Refer to the Vishay 592D datasheet for complete specifications and application guidelines.
