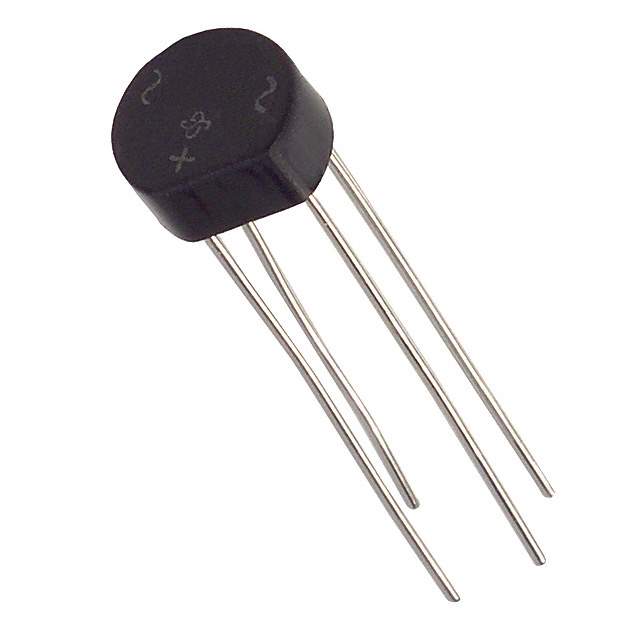

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 2A
Current - Reverse Leakage @ Vr 5μA @ 800V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package WOG
Win Source Part Number 197609-2W08G-E4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2W08G-E4 CAD Model

Description

Product Overview

The 2W08G-E4 is a high-efficiency diode capable of handling increased power demands in both consumer and industrial electronics. It ensures stable operations across a range of applications requiring precise AC to DC conversion.

Applications and Projects

  • Consumer Electronics
  • Industrial Controllers
  • Energy Storage Systems
  • Switching Power Supplies

Features and Benefits

  • Stability: Delivers high-performance capabilities under various load conditions.
  • Efficiency: Minimizes losses with superior conversion rates.
  • Durable Build: Designed for high durability and reliability.
  • Versatile Functionality: Suitable for both low and high-power applications.

Additional Details: The 2W08G-E4 provides a reliable solution for those requiring a diode that can handle both routine and peak loads effectively, ensuring continuity of performance.
