Same model may have multiple batches, images only for reference.

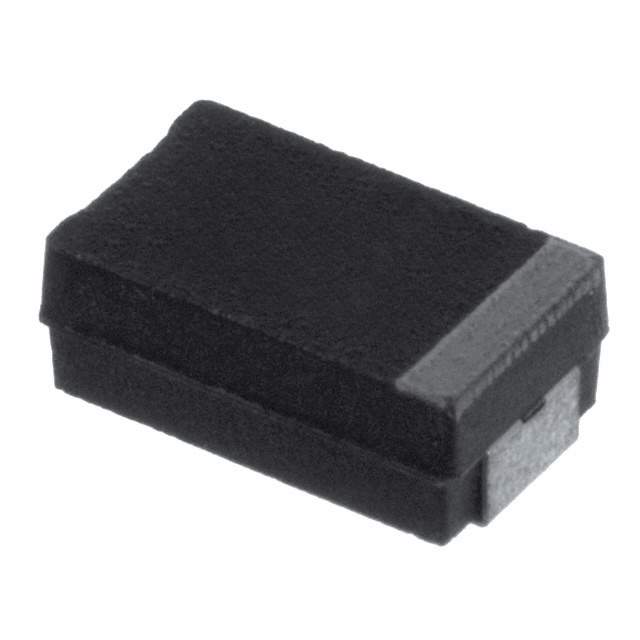

293D226X0020C2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D226X0020C2TE3

Part No 293D226X0020C2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20% 20V 2312
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Sprague
Packaging Reel
Capacitance 22μF
Tolerance ±20%
Voltage - Rated 20V
Type Molded
ESR (Equivalent Series Resistance) 1.1Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 2312 (6032 Metric)
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Maximum) 0.110" (2.79mm)
Manufacturer Size Code C
Features General Purpose
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801920-293D226X0020C2TE3
Ultra Librarian 3D Model Ultra Librarian 293D226X0020C2TE3 CAD Model

Description

The Vishay Sprague 801920-293D226X0020C2TE3 is a molded SMD capacitor.

  • Capacitance: 22μF
  • Voltage Rating: 20V
  • Tolerance: ±20%
  • ESR: 1.1Ohm
  • Applications: General Purpose
  • Manufacturer Size Code: C
  • Operating Temperature: -55°C to 125°C
  • Dimension: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Package: 2312 (6032 Metric)
  • Height: 0.110" (2.79mm)
  • Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
