Same model may have multiple batches, images only for reference.

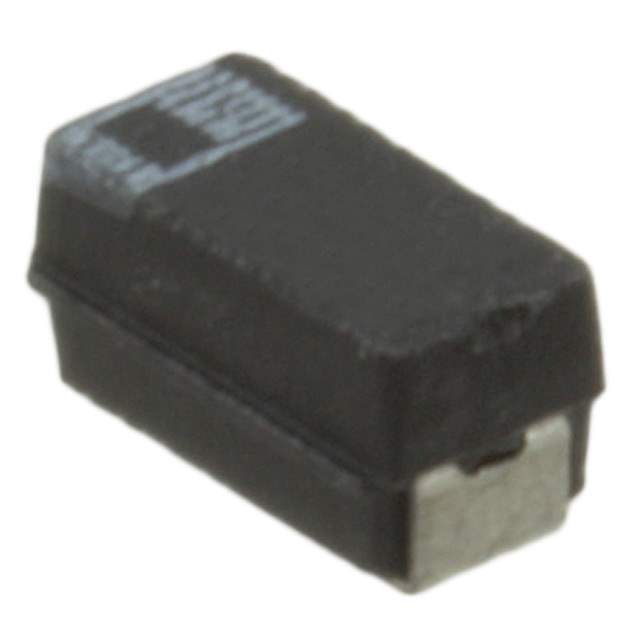

293D156X96R3A2T Real Image
Same model may have multiple batches, images only for reference.

293D156X96R3A2T

Part No 293D156X96R3A2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 15UF 6.3V 10% 1206
Datasheet
293D156X96R3A2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 15μF
Tolerance ±10%
Voltage Rating 6.3V
Type Molded
ESR 2.9 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.071" (1.80mm)
Manufacturer Size Code A
Features General Purpose
Win Source Part Number 056976-293D156X96R3A2T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 293D156X96R3A2T CAD Model

Description

Features and Benefits

  • High capacitance values
  • Stable capacitance over temperature range
  • Low ESR (Equivalent Series Resistance)

Applications

  • Power supply filtering
  • DC-DC converters
  • Decoupling and bypass applications

Additional Details

The 293D156X96R3A2T is a high-performance tantalum capacitor known for its reliability in demanding applications. It is suitable for industrial, automotive, and consumer electronics where a compact yet robust solution is required.
