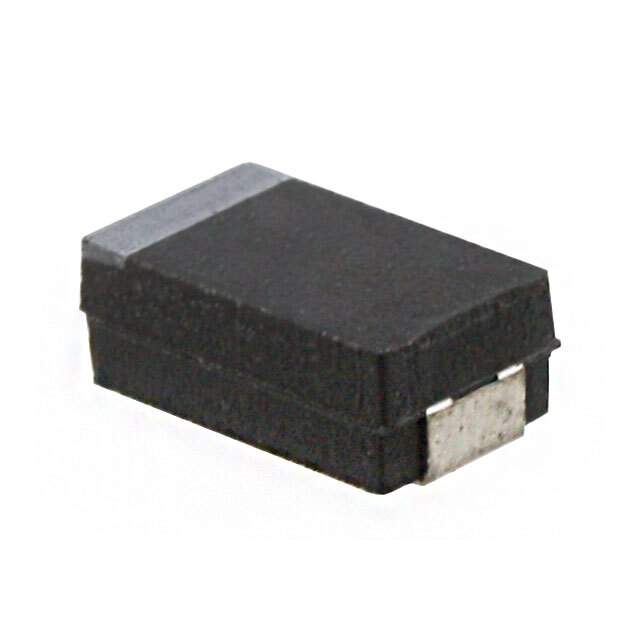

The 293D106X9035D2T is a solid tantalum chip capacitor manufactured by Vishay. As part of the 293D series, it's known for its molded case, reliable performance, and high capacitance-to-volume ratio. This capacitor is designed for surface mount applications and offers excellent stability and longevity.

Applications

• Power supply decoupling in electronic circuits.
• Filtering applications in signal processing circuits.
• Bypass capacitor in digital circuits.
• DC-DC converters.
• Embedded systems.

Features

• Molded Case: Provides a robust and compact package for surface mounting.
• Solid Tantalum Construction: Offers excellent electrical characteristics and long-term reliability.
• RoHS Compliant: Complies with environmental regulations for lead-free manufacturing.
• High Volumetric Efficiency: Provides a large capacitance value in a small size.
• Capacitance Value: 10µF (microfarads)
• Voltage Rating: 35V (volts)
• Operating Temperature Range: Typically -55°C to +125°C (consult the datasheet for precise specifications).

Benefits

• High Reliability: Solid tantalum construction ensures consistent performance over a wide range of conditions.
• Small Size: Allows for use in densely populated circuit boards.
• Easy to Assemble: Surface mount design facilitates automated assembly.
• Stable Performance: Offers stable capacitance and low ESR over temperature and frequency.
• Long Lifespan: Tantalum capacitors exhibit a long operational life, contributing to overall system reliability.

Additional Details

The 293D series is a popular choice for applications where reliability and size are critical. The "D2T" suffix typically denotes tape and reel packaging. The 106 signifies a capacitance of 10 microfarads, and the 9035 indicates a voltage rating of 35V. Always refer to the manufacturer's datasheet for detailed specifications, including ESR, ripple current ratings, and temperature derating.
