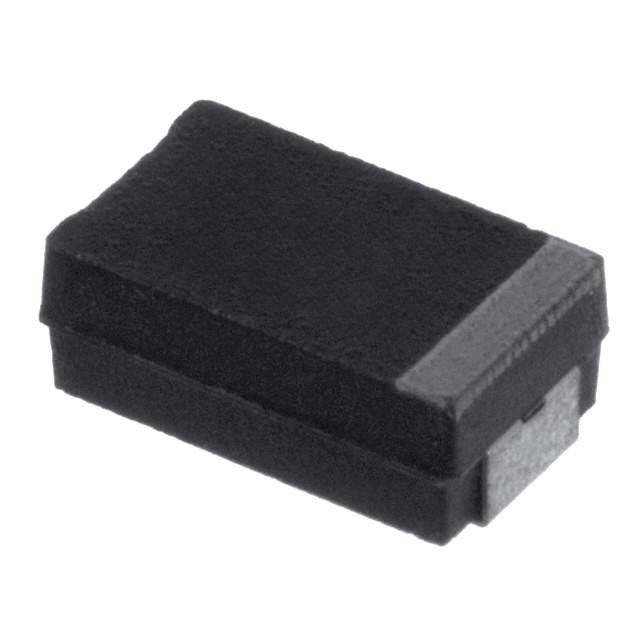

The 293D106X9010C2T is a solid tantalum chip capacitor manufactured by Vishay. It's part of the 293D series, characterized by its molded case construction and reliable performance, making it suitable for a variety of electronic applications.

Applications

• Decoupling in power supplies.
• Filtering in signal processing circuits.
• Bypass capacitor in digital circuits.
• DC-DC converters.
• Embedded systems.

Features

• Molded Case: Provides physical protection and precise dimensions for automated assembly.
• Solid Tantalum Construction: Ensures stable electrical characteristics and long-term reliability.
• RoHS Compliant: Complies with environmental regulations for lead-free manufacturing.
• High Volumetric Efficiency: Offers a high capacitance value in a small package size.
• Capacitance Value: 10µF (microfarads)
• Voltage Rating: 10V (volts)
• Operating Temperature Range: Typically -55°C to +125°C (consult the datasheet for accurate specifications).

Benefits

• Reliable Operation: Solid tantalum construction provides consistent performance over a wide range of conditions.
• Compact Size: Allows for use in space-constrained applications.
• Easy Assembly: Surface mount design enables automated assembly processes.
• Stable Electrical Characteristics: Offers stable capacitance and low ESR (Equivalent Series Resistance).
• Long Lifespan: Tantalum capacitors have a long operational life, contributing to system reliability.

Additional Details

The 293D series is a widely used choice for general-purpose applications requiring stable and reliable capacitance. The "C2T" suffix typically indicates a specific case size and packaging configuration. The 106 represents a capacitance of 10 microfarads, and 9010 indicates a voltage rating of 10V. Consult the manufacturer's datasheet for specific details, including ESR, ripple current ratings, and temperature derating curves.
